Samtec Inc. MCX-J-P-H-ST-SM1-TR — RF Cable Assemblies

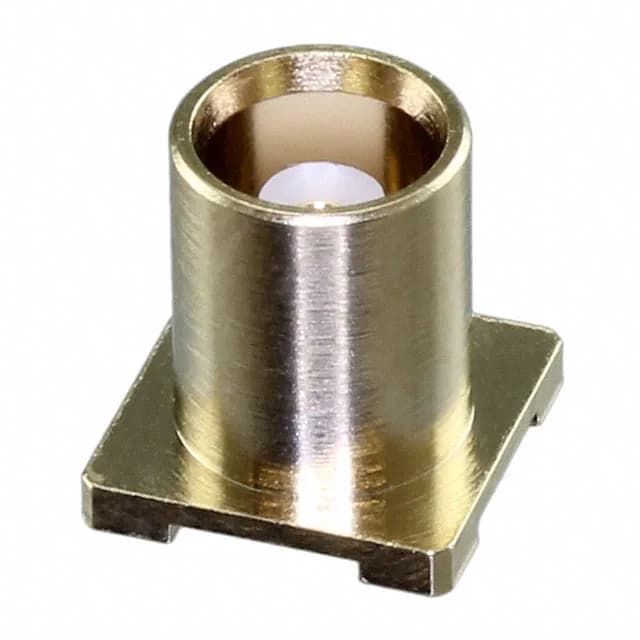

Samtec MCX-J-P-H-ST-SM1-TR MCX Jack, 50 Ohm, 6 GHz

MPNMCX-J-P-H-ST-SM1-TR
Active

Samtec MCX jack, female socket, 50 Ohm impedance, 6 GHz max frequency, surface mount, solder termination, gold body, 1 port, Tape & Reel.

$5.2500Ref. price · indicative, final on quote
Samtec Inc. MCX-J-P-H-ST-SM1-TR datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

MCX-J-P-H-ST-SM1-TR specifications
ParameterValue
MountingSurface Mount
Connector typeJack, Female Socket
Fastening typeSnap-On
Voltage rating335 V
Frequency - max6 GHz
Operating temperature-65°C ~ 125°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageTape & Reel (TR) Cut Tape (CT)
Impedance50 Ohms
Body finishGold
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

50 Ohm RF Launch, 6 GHz Ceiling

The Samtec MCX-J-P-H-ST-SM1-TR is a 50 Ohm MCX jack — female socket, snap-on coupling, surface-mount termination.

SMT Footprint and Board Launch

This is a surface-mount part — the contact and shield are soldered directly to the PCB pads. The SMT termination means the connector is reflow-soldered alongside other surface-mount components, which saves a wave-solder pass. The board launch geometry — pad size, ground-plane clearance, and via pattern around the centre pin — must be designed for 50 Ohm impedance to keep the return loss low up to 6 GHz.

Frequently asked questions

What is the impedance of MCX-J-P-H-ST-SM1-TR?

The MCX-J-P-H-ST-SM1-TR is a 50 Ohm connector, rated up to 6 GHz maximum frequency.
