Samtec TRUE75™ MCX, plug male pin, 50 Ohm, RG-174/316 cable, snap-on, solder contact, crimp shield, -65°C to 125°C.
| Parameter | Value |
|---|---|
| Series | TRUE75™ MCX |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Snap-On |
| Cable group | RG-174, 316 |
| Operating temperature | -65°C ~ 125°C |
| Body material | Brass |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |

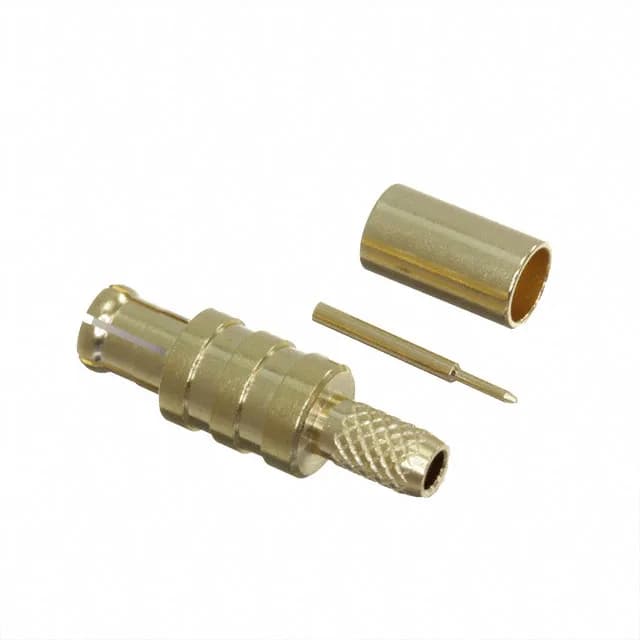

| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50 Ohms |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Solder |
| Center contact plating | Gold |
The MCX-P-C-H-ST-CA1: The snap-on coupling locks with a positive detent, giving quick mate-and-disconnect in dense panel layouts where you don't have room to spin a coupling nut.
This plug is built for RG-174 and RG-316 cable. The centre contact solders to the signal conductor, and the shield is crimped through the ferrule.
It is designed for RG-174 and RG-316 coaxial cable. The centre contact and ferrule dimensions match the conductor and jacket diameters of those two cable types.
No separate line items needed.
This part is active and quoted to order.
