Samtec Inc. MCX-P-P-H-RA-TH1 — RF Cable Assemblies

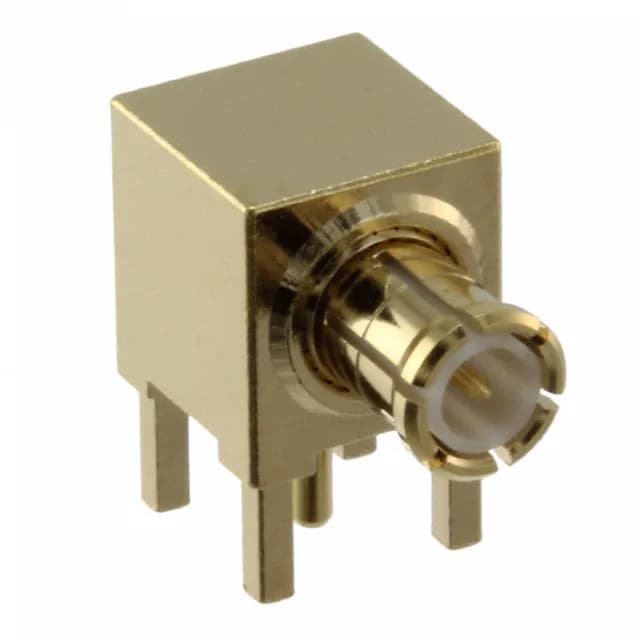

Samtec MCX-P-P-H-RA-TH1 MCX Plug, 50 Ohm, 6 GHz, Right Angle

MPNMCX-P-P-H-RA-TH1
Active

Samtec MCX plug, male pin, 50 Ohms, 6 GHz, right-angle through-hole, gold body, snap-on, 1 port, PTFE dielectric.

$6.8800Ref. price · indicative, final on quote
Samtec Inc. MCX-P-P-H-RA-TH1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

MCX-P-P-H-RA-TH1 specifications
ParameterValue
MountingThrough Hole, Right Angle
Connector typePlug, Male Pin
Fastening typeSnap-On
Frequency - max6 GHz
Operating temperature-65°C ~ 125°C
Body materialCopper Alloy
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageTray
Impedance50 Ohms
Body finishGold
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

RF Connector for Board-Edge Launch

The MCX-P-P-H-RA-TH1: The snap-on fastening gives a positive click on mating — no torque wrench needed, but the retention is solid enough for internal cable assemblies and test fixtures. Gold body finish and gold-plated centre contact resist corrosion through repeated mate cycles in lab or field environments.

What the 6 GHz and 50 Ohm Ratings Mean on the Bench

The 6 GHz frequency ceiling covers the full sub-6 GHz spectrum — WiFi 6E, 5G NR FR1, ISM bands, and most commercial wireless standards.

Frequently asked questions

What is the impedance of MCX-P-P-H-RA-TH1?

The MCX-P-P-H-RA-TH1 is a 50 Ohm connector, matching the standard impedance for RF coaxial systems and PCB trace designs.
