Samtec Inc. MCX7-J-P-H-ST-SM1 — RF Cable Assemblies

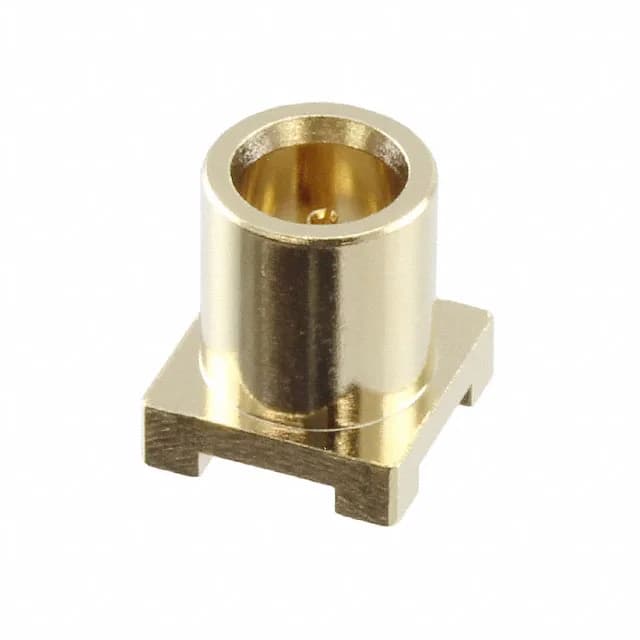

Samtec TRUE75 MCX7-J-P-H-ST-SM1, 75 Ohm MCX Jack, 6 GHz

MPNMCX7-J-P-H-ST-SM1
Active

Samtec TRUE75™ MCX7 series, MCX jack, female socket, 1 port, 75 Ohm impedance, 6 GHz max frequency, surface mount, gold body, snap-on fastening, 170 V rating.

$4.7500Ref. price · indicative, final on quote
Samtec Inc. MCX7-J-P-H-ST-SM1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

MCX7-J-P-H-ST-SM1 specifications
ParameterValue
SeriesTRUE75™ MCX7
MountingSurface Mount
Connector typeJack, Female Socket
Fastening typeSnap-On
Voltage rating170 V
Frequency - max6 GHz
Operating temperature-65°C ~ 125°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageTray
Impedance75 Ohms
Body finishGold
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

75 Ohm MCX Jack, Surface Mount, 6 GHz — Samtec TRUE75™ MCX7

The MCX7-J-P-H-ST-SM1: It is a single-port, surface-mount connector rated to 6 GHz with a gold-plated brass body and a PTFE dielectric. The 75 Ohm impedance and 6 GHz bandwidth target video, broadcast, and telecom applications where the transmission line is 75 Ohm (e.g., SDI, DOCSIS, test equipment) and the board footprint needs an SMT reflow process rather than a through-hole solder tail.

Wide Temperature Range and Material Choices

The PTFE dielectric maintains stable impedance across this range, and the beryllium copper centre contact (gold-plated) resists fatigue from thermal cycling and repeated snap-on mating cycles. The brass body with gold finish provides corrosion resistance in humid or mildly corrosive environments.
