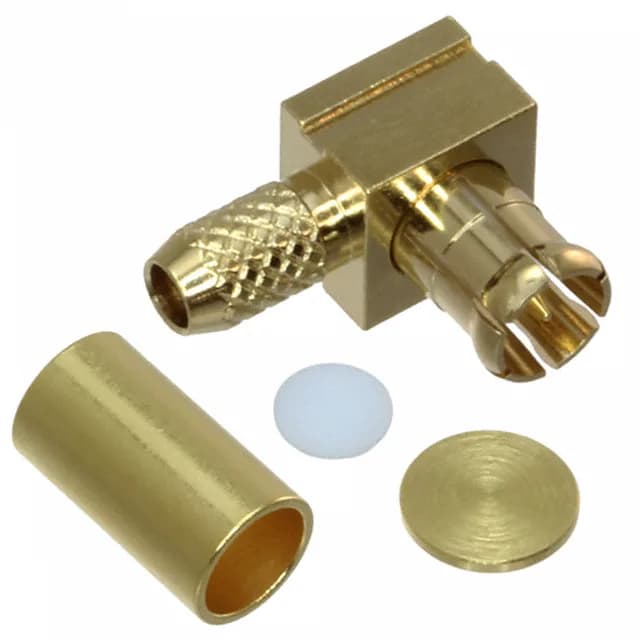

Samtec MCX7-P-C-H-RA-CA3, MCX Plug, 75 Ohm, 4.5 GHz

MPNMCX7-P-C-H-RA-CA3
Active

Samtec TRUE75™ MCX7 series, Plug Male Pin, Right Angle, Free Hanging, 75 Ohms, 4.5 GHz, Snap-On, Gold Body, RG-179, Solder Contact, Crimp Shield.

$8.1300Ref. price · indicative, final on quote
Samtec Inc. MCX7-P-C-H-RA-CA3 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

MCX7-P-C-H-RA-CA3 key specifications
ParameterValue
SeriesTRUE75™ MCX7
MountingFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeSnap-On
Voltage rating170 V
Frequency - max4.5 GHz
Cable groupRG-179
Operating temperature-65°C ~ 125°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass

All specifications

MCX7-P-C-H-RA-CA3 additional specifications
ParameterValue
PackageBulk
Impedance75 Ohms
Body finishGold
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

75 Ohm MCX Plug for RG-179 — Right-Angle, Snap-On

The Samtec MCX7-P-C-H-RA-CA3 is a 75 Ohm MCX plug from the TRUE75™ MCX7 series, designed for RG-179 cable. Rated to 4.5 GHz and 170 V, this connector is built for video, broadband, and other 75 Ohm RF signal paths where a compact, snap-lock interface is needed.

75 Ohm Impedance — Not Your Standard 50 Ohm MCX

Standard MCX connectors are 50 Ohm; this TRUE75™ variant keeps the same snap-on interface but matches 75 Ohm cable and system impedance — critical for video distribution, CCTV, and broadband data where a 50 Ohm stub would create a reflection. The 4.5 GHz max frequency is a practical ceiling for this impedance; the straight-mate sibling MCX7-P-C-H-ST-CA3 is rated to 6 GHz, so the right-angle bend in the RA-CA3 introduces a small additional discontinuity that limits the top end. For runs up to 4.5 GHz the right-angle body saves board-edge space without a separate adapter.

Termination Sequence — Solder Centre, Crimp Braid

Termination is a two-step process: solder the centre contact to the RG-179 centre conductor, then crimp the shield termination over the braid. The PTFE dielectric holds the centre pin concentric through the solder cycle.
