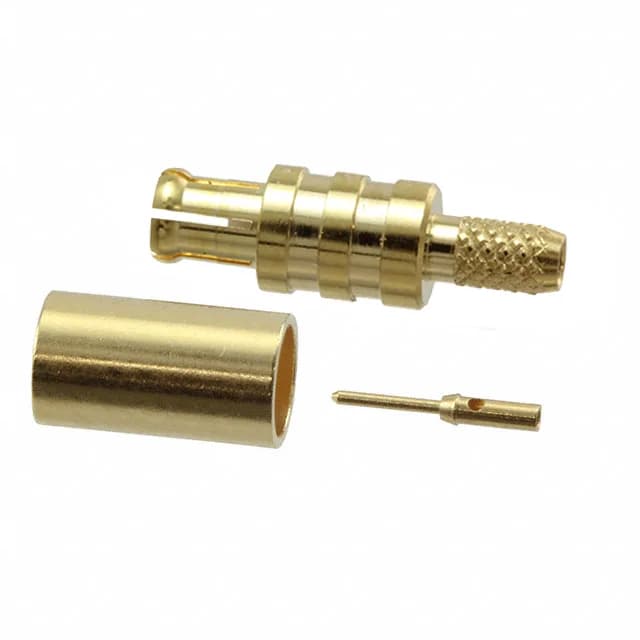

Samtec Inc. MCX7-P-C-H-ST-CA3 — RF Cable Assemblies

Samtec TRUE75 MCX7-P-C-H-ST-CA3 MCX Plug, 75 Ohm, RG-179

MPNMCX7-P-C-H-ST-CA3
Active

Samtec TRUE75™ MCX7 series MCX plug, male pin, 75 Ohm impedance, for RG-179 cable, snap-on coupling, gold-plated brass body, solder contact termination, crimp shield, 170 V, 6 GHz, bulk.

$7.6400Ref. price · indicative, final on quote
Samtec Inc. MCX7-P-C-H-ST-CA3 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

MCX7-P-C-H-ST-CA3 key specifications
ParameterValue
SeriesTRUE75™ MCX7
MountingFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeSnap-On
Voltage rating170 V
Frequency - max6 GHz
Cable groupRG-179
Operating temperature-65°C ~ 125°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper

All specifications

MCX7-P-C-H-ST-CA3 additional specifications
ParameterValue
PackageBulk
Impedance75 Ohms
Body finishGold
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

75 Ohm MCX Plug for RG-179 — Field-Termination Fit

The Samtec MCX7-P-C-H-ST-CA3 is a 75 Ohm MCX plug from the TRUE75™ MCX7 series, built for RG-179 cable. Rated to 6 GHz and 170 V, it handles modern HD video and high-rate data signals without breaking a sweat.

Cable Prep and Termination Sequence

This plug terminates to RG-179 coax with a solder centre contact and a crimp shield termination. The centre pin is soldered to the signal conductor; the braid is crimped over the body for a solid 360° shield bond. The PTFE dielectric material in the connector matches the RG-179 dielectric, keeping the 75 Ohm impedance continuous through the junction. Free-hanging mount means it terminates the cable end directly — no PCB footprint needed.

Snap-On Coupling and Operating Range

The snap-on fastening is the standard MCX interface — quick to mate and unmate, but not threaded, so it's best in applications where vibration is controlled (rack equipment, test leads, indoor runs).

Frequently asked questions

Where can I purchase the MCX7-P-C-H-ST-CA3 online?

The MCX7-P-C-H-ST-CA3 is sourced to order through independent distribution. Submit an RFQ for current availability and pricing — confirmed at quote time.

What cable group does the MCX7-P-C-H-ST-CA3 work with?

This plug is designed for RG-179 cable. The solder centre contact and crimp shield termination match the RG-179 conductor and braid diameters.

What is the impedance of the MCX7-P-C-H-ST-CA3?

75 Ohms.
