Samtec Inc. MMCX-J-P-H-ST-TH1 — RF Cable Assemblies

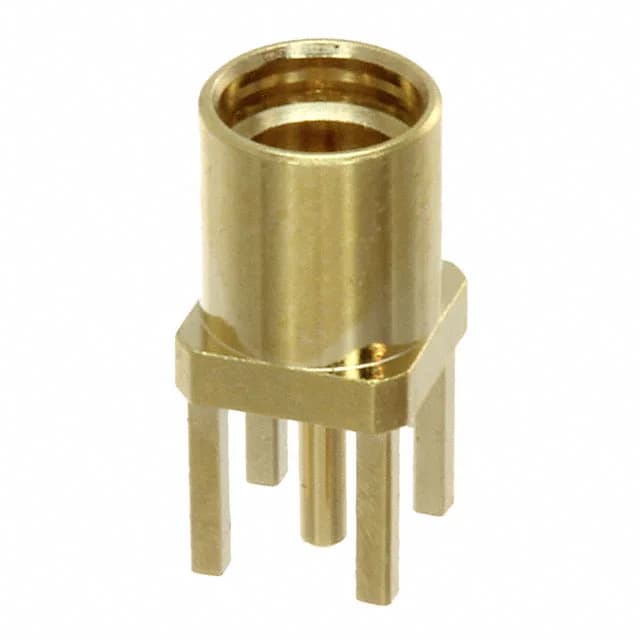

MMCX-J-P-H-ST-TH1 MMCX Jack, 50 Ohm, 6 GHz, Through Hole

MPNMMCX-J-P-H-ST-TH1
Active

MMCX jack, female socket, 50 Ohm impedance, 6 GHz max, through hole, gold-plated brass body, snap-on mating, solder termination.

$2.4500Ref. price · indicative, final on quote
Samtec Inc. MMCX-J-P-H-ST-TH1 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

MMCX-J-P-H-ST-TH1 specifications
ParameterValue
MountingThrough Hole
Connector typeJack, Female Socket
Fastening typeSnap-On
Voltage rating500 V
Frequency - max6 GHz
Operating temperature-65°C ~ 125°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageTray
Impedance50 Ohms
Body finishGold
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

50 Ohm MMCX Jack for Through-Hole PCB Mount

The MMCX-J-P-H-ST-TH1: It mates with the standard MMCX snap-on plug interface, providing a quick-connect RF interconnect rated to 6 GHz.

Mounting and Termination — Solder to Board

Through-hole solder termination — the centre pin and shield legs pass through the PCB and are soldered on the opposite side.

Temperature Range and Materials

The PTFE dielectric and beryllium copper centre contact hold up to thermal cycling without cracking or losing spring force. The brass body with gold finish gives a stable ground path over the full temperature range.
