Mini AB receptacle for USB 2.0

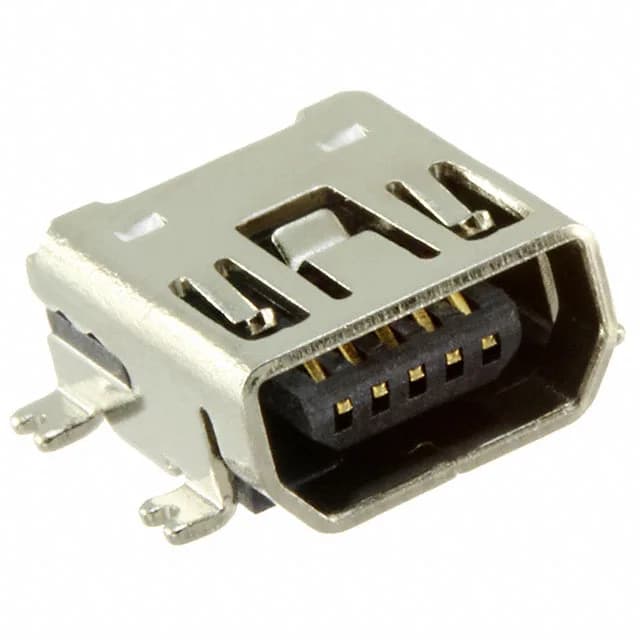

The MUSB-05-F-AB-SM-A is the 5-contact mini AB receptacle in Samtec's MUSB series, accepting both mini A and mini B plugs per USB 2.0. Gold-plated contacts rated 30 V, surface-mount right-angle orientation, and 1500 mating cycles.
Position count across the MUSB series
Within the MUSB series the 5-contact MUSB-05-F-AB-SM-A shares the same 5-contact count and USB 2.0 specification with the tape-and-reel variant MUSB-05-F-AB-SM-A-K-TR, the mini B receptacle MUSB-05-F-B-SM-A, and the top-mount version MUSB-05-S-AB-SM-A — the choice between them is driven by packaging (tray vs tape-and-reel), connector type (mini AB vs mini B), and mounting orientation (right-angle vs vertical).
