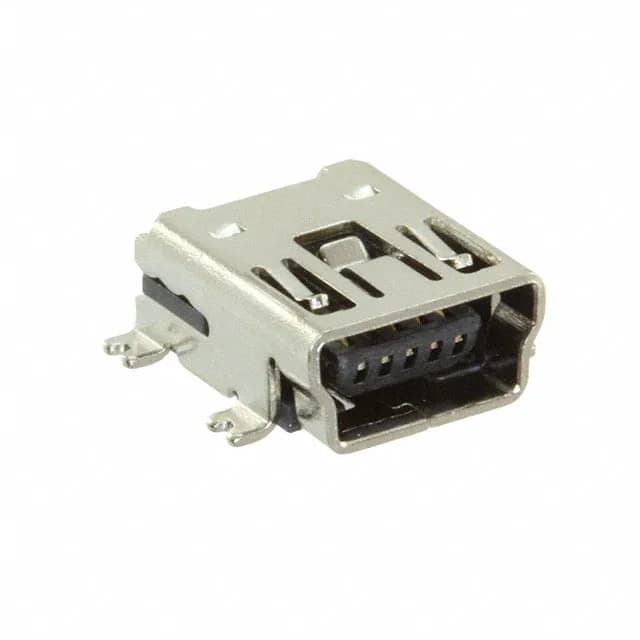

Samtec MUSB series USB - mini B receptacle, order code MUSB-05-F-B-SM-A, 5 contacts, single port, USB 2.0, gold-plated contacts, surface-mount right-angle, solder termination, unshielded, tray package.
| Parameter | Value |
|---|---|
| Series | MUSB |
| Mounting | Surface Mount, Right Angle |
| Connector type | USB - mini B |
| Voltage - rated | 30V |
| Positions | 5 |
| Mounting feature | Horizontal |
| Operating temperature | -50°C ~ 85°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Board Guide, Solder Retention |
| Shielding | Unshielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The MUSB-05-F-B-SM-A: The MUSB-05-F-BM-SM-A is the 5-contact USB 2.0 mini B receptacle in Samtec's MUSB series, configured for surface-mount right-angle placement on the board edge. Gold-plated contacts handle the USB 2.0 signal pair and power at 30 V rating, with the operating range spanning -50°C to 85°C.
Quoted to order against the BOM quantity; availability confirmed at RFQ.
The MUSB-05-F-B-SM-A is a receptacle (female) connector. It mates with a corresponding mini B plug.
