Gold contacts, 1500-cycle durability

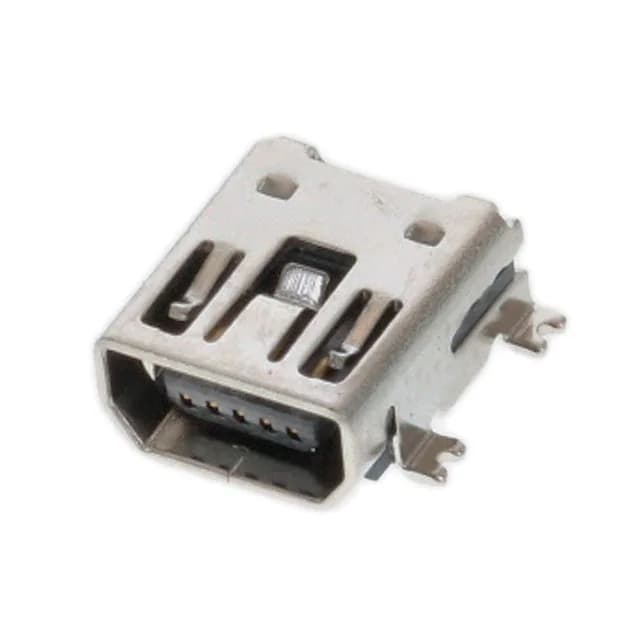

The MUSB-05-S-AB-SM-A-K-TR is the 5-contact mini AB receptacle in Samtec's MUSB series, rated for USB 2.0 signaling. Gold-plated contacts are rated for 1500 mating cycles, supporting repeated field connection and disconnection. The right-angle SMT termination places the connector parallel to the board edge.
Position count across the MUSB series
The MUSB-05-S-AB-SM-A-K-TR carries 5 contacts and shares the same 30 V rating, gold plating, and 1500-cycle durability with the MUSB-05-S-AB-SM-A-TR (5 contacts, no pick-and-place feature) and the MUSB-05-F-AB-SM-A-K-TR (5 contacts, female orientation). The board footprint and mating interface are identical across the series — select by gender and pick-and-place requirement.
