Samtec Inc. MUSBR-05-F-O-B-SM-A — USB / HDMI Cable Assemblies

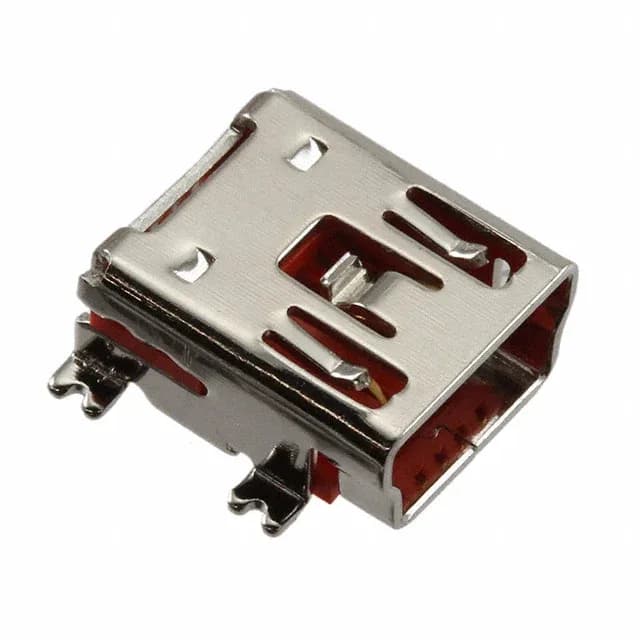

Samtec MUSBR-05-F-O-B-SM-A USB Mini B Receptacle, 5 Contacts

MPNMUSBR-05-F-O-B-SM-A
Active

Samtec MUSBR series USB - mini B receptacle, order code MUSBR-05-F-O-B-SM-A, 5 contacts, single port, USB 2.0, gold contact finish, 30 V, surface-mount right-angle, solder termination, unshielded.

$1.4500Ref. price · indicative, final on quote
Samtec Inc. MUSBR-05-F-O-B-SM-A datasheet (PDF)
RoHSROHS3 Compliant
SeriesMUSBR
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

MUSBR-05-F-O-B-SM-A specifications
ParameterValue
SeriesMUSBR
MountingSurface Mount, Right Angle
Connector typeUSB - mini B
Voltage - rated30V
Positions5
Mounting featureHorizontal
Operating temperature-50°C ~ 85°C
Insulation colorOrange
Shell (Shielding material)Brass
GenderReceptacle
PackageTray
FeaturesBoard Guide, Solder Retention
ShieldingUnshielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Right-angle mini B receptacle for board-edge USB

The MUSBR-05-F-O-B-SM-A is the 5-contact, single-port USB mini B receptacle in Samtec's MUSBR series, mounted horizontal and surface-mount right-angle for board-edge placement. Gold-plated contacts rated 30 V support USB 2.0 signaling, and the 1500-cycle mating rating suits repeated connection in test or field-service gear.

Same-series sibling with black insulation

Within the MUSBR series the MUSBR-05-F-O-B-SM-A carries orange insulation; the sibling MUSBR-05-S-O-B-SM-A shares the same 5 contacts, gold plating, 30 V rating, and right-angle SMT footprint but uses black insulation — the board layout and mating half are identical.

Frequently asked questions

What is the difference between MUSBR-05-F-O-B-SM-A and MUSBR-05-S-O-B-SM-A?

The only difference is the insulation color — orange on the -F-O-B-SM-A, black on the -S-O-B-SM-A. All electrical ratings, contact count, plating, and footprint are identical.
