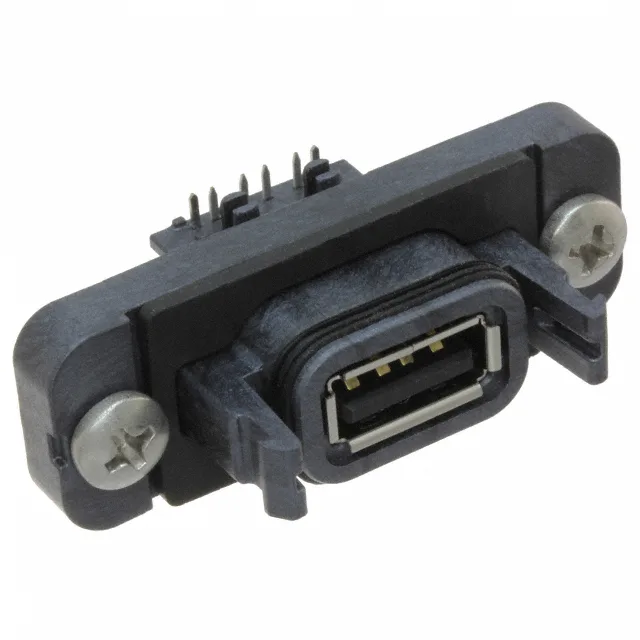

RPBU-01-S-A-RA — Samtec Inc. product photo
Samtec Inc.

Samtec RPBU-01-S-A-RA USB-A Receptacle, 4 Contacts, IP68

MPNRPBU-01-S-A-RA
Active

Samtec Acclimate™ RPBU USB-A (USB TYPE-A) receptacle, order code RPBU-01-S-A-RA, 4 contacts, single port, 4.2A per contact, gold-plated contacts, shielded, panel mount through-hole right-angle, solder termination.

$22.09Ref. price · indicative, final on quote
RPBU-01-S-A-RA datasheet
StockIn Stock (26)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

RPBU-01-S-A-RA Technical Specifications
ParameterValue
SeriesAcclimate™ RPBU
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Current rating4.2A per Contact
Positions4
Ingress protectionIP68 - Dust Tight, Waterproof
Mounting featureFlange, Horizontal
Operating temperature-20°C ~ 80°C
Insulation colorBlack
Shell (Shielding material)Phosphor Bronze
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTube
ShieldingShielded
TerminationSolder
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Panel-mount USB-A with IP68 seal

The RPBU-01-S-A-RA is the 4-contact right-angle member of Samtec's Acclimate™ RPBU USB-A receptacle line, rated IP68 against dust and water ingress when mounted to a panel. Gold-plated contacts carry 4.2A per contact under USB 2.0 signalling; the shielded phosphor bronze shell and UL94 V-0 rated housing suit industrial and outdoor equipment enclosures.

Right-angle vs vertical mounting in the series

Within the Acclimate™ RPBU series, the RPBU-01-S-A-RA mounts with a flange, horizontal orientation (right-angle PCB exit), while the RPBU-01-S-A-VT and RPBU-01-S-A-VT-LC both mount flange, vertical — the pitch, contact count, current rating, and IP68 rating are shared across the three, so the choice turns on cable exit direction and board layout.

Frequently asked questions

Will RPBU-01-S-A-RA drop into a panel specified around RPBU-01-S-A-VT-LC without rewiring?

No — the RPBU-01-S-A-RA is a right-angle (horizontal) exit, while the RPBU-01-S-A-VT-LC is vertical. Both are 4-contact USB-A receptacles with the same IP68 rating and current rating, but the mounting orientation differs, so the panel cutout and cable routing must match the chosen orientation.
