15-position compression contact at 1.00 mm pitch

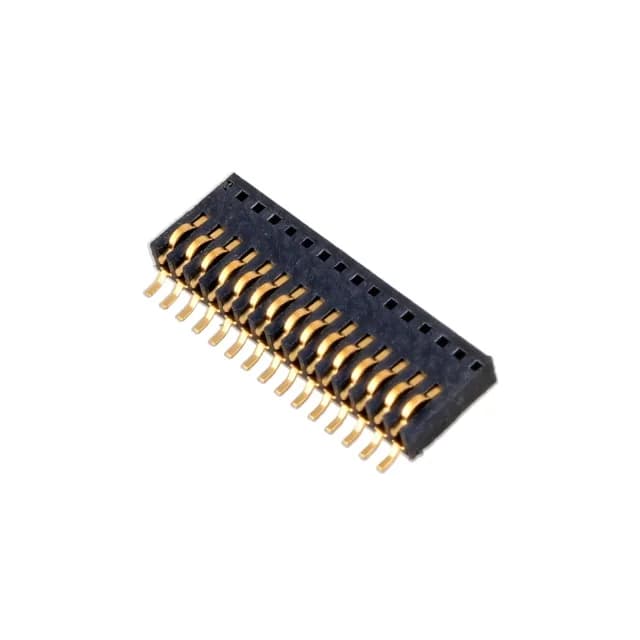

The SEI-115-02-G-S-AB is the 15-position member of Samtec's SEI spring-loaded contact line, a non-gendered compression contact on a 1.00 mm pitch. Gold plating at 10.0µin (0.25µm) over phosphor bronze supports repeated mating cycles in board-to-board stacking applications.
Position count across the SEI series
Within the SEI series the 15-position SEI-115-02-G-S-AB sits between the 10-position SEI-110-02-G-S-AB and the 20-position SEI-120-02-G-S-AB — the 1.00 mm pitch, single-row layout, gold plating, and SMT termination are shared across the series, so match the position count to the circuit count of the board stack. A 30-position sibling, the SEI-130-02-G-S-E-AB, is also available for higher-density designs.
