Samtec Inc. SIB-105-02-F-S-LC

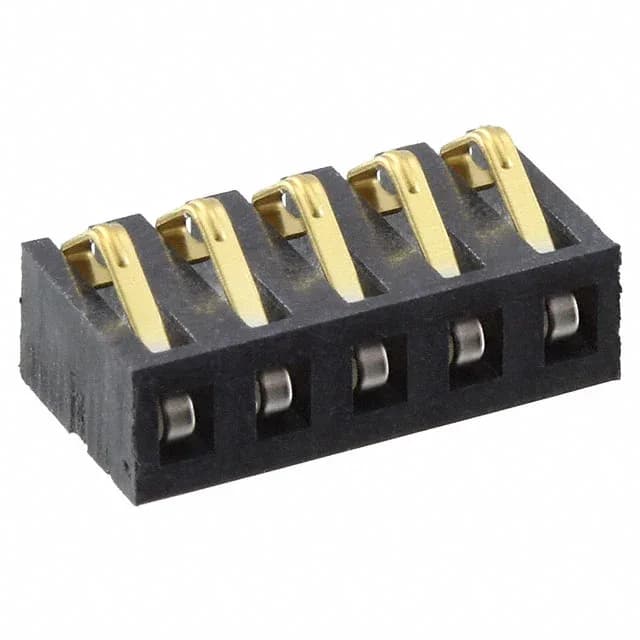

Samtec SIB-105-02-F-S-LC 5-Position Spring-Loaded Contact

MPN SIB-105-02-F-S-LC
Active

Samtec SIB compression contact, order code SIB-105-02-F-S-LC, 5 positions, single row, 0.100" (2.54mm) pitch, gold flash plating, phosphor bronze, surface-mount, tube package.

$2.8800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesSIB
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

SIB-105-02-F-S-LC specifications
ParameterValue
SeriesSIB
MountingSurface Mount
Connector typeCompression Contact, Non-Gendered
Positions5
MaterialPhosphor Bronze
Pitch0.100\" (2.54mm)
PackageTube
Contact finishGold
Rows1
Contact finish thicknessFlash

Product details

Compression contact, 5 positions, SMT

The SIB-105-02-F-S-LC is the 5-circuit member of Samtec's SIB spring-loaded contact line, a non-gendered compression contact for board-to-board or board-to-component stacking. Single-row, 0.100" (2.54mm) pitch, gold flash on phosphor bronze contacts, surface-mount termination — the spring beam wipes the pad on compression and maintains contact force without a secondary latch.

Position count across the SIB series

Within the SIB series the 5-position SIB-105-02-F-S-LC sits between the 4-position SIB-104-02-F-S-LC and the 6-position SIB-106-02-F-S-LC — the 0.100" pitch, single-row layout, and gold flash plating are shared across the three, so match the position count to the circuit count on the board.

MPN
SIB-105-02-F-S-LC
