Samtec Inc. SIB-108-02-F-S-LC — Spring-Loaded Contacts

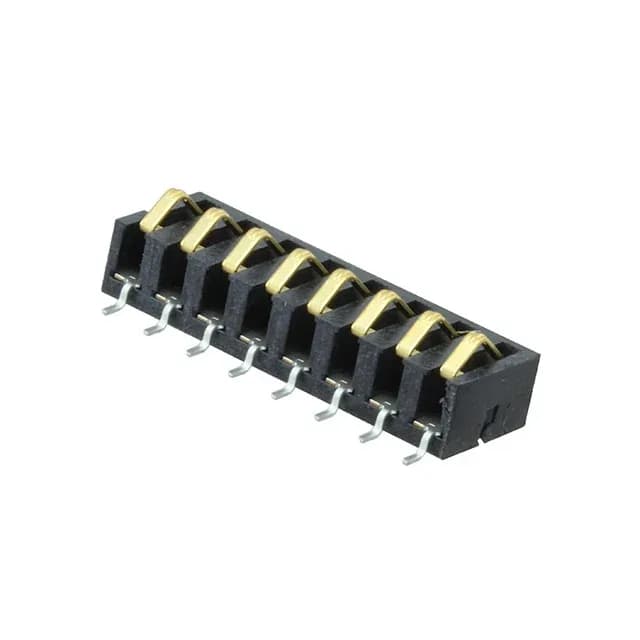

Samtec SIB-108-02-F-S-LC Spring-Loaded Contact, 8-Pos

MPNSIB-108-02-F-S-LC
Active

Samtec SIB series compression contact, non-gendered, order code SIB-108-02-F-S-LC, 8 positions, single row, 0.100" (2.54mm) pitch, gold flash plating, phosphor bronze contact, surface-mount solder termination.

$6.0100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSIB
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

SIB-108-02-F-S-LC specifications
ParameterValue
SeriesSIB
MountingSurface Mount
Connector typeCompression Contact, Non-Gendered
Positions8
MaterialPhosphor Bronze
Pitch0.100\" (2.54mm)
PackageTube
Contact finishGold
Rows1
Contact finish thicknessFlash

Product details

8-position compression contact at 0.100" pitch

The SIB-108-02-F-S-LC: Gold flash plating on phosphor bronze contacts suits repeated mating cycles in board-to-board or test-fixture applications.

Position count across the SIB series

The 8-position SIB-108-02-F-S-LC sits between the 7-position SIB-107-02-F-S-LC and the 6-position SIB-106-02-F-S within the same SIB series — all share the 0.100" pitch, single-row layout, and gold-flash plating, so the board footprint and contact design are consistent across the three.

Frequently asked questions

What is the pitch of the SIB-108-02-F-S-LC?

The pitch is 0.100" (2.54mm).
