Samtec Inc. SIB-110-02-F-S-LC — Spring-Loaded Contacts

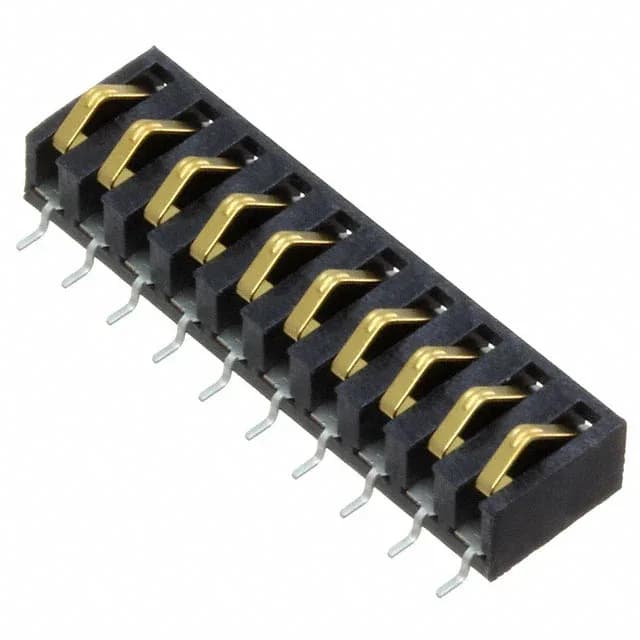

Samtec SIB-110-02-F-S-LC 10-Position Spring-Loaded Contact

MPNSIB-110-02-F-S-LC
Active

Samtec SIB series compression contact, non-gendered, order code SIB-110-02-F-S-LC, 10 positions, single row, 0.100" (2.54 mm) pitch, gold flash contact finish, phosphor bronze material, surface mount, tube package.

$5.2600Ref. price · indicative, final on quote
Samtec Inc. SIB-110-02-F-S-LC datasheet (PDF)
RoHSROHS3 Compliant
SeriesSIB
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

SIB-110-02-F-S-LC specifications
ParameterValue
SeriesSIB
MountingSurface Mount
Connector typeCompression Contact, Non-Gendered
Positions10
MaterialPhosphor Bronze
Pitch0.100\" (2.54mm)
PackageTube
Contact finishGold
Rows1
Contact finish thicknessFlash

Product details

10-position spring-loaded contact, 0.100" pitch

The SIB-110-02-F-S-LC: Gold flash contact finish on phosphor bronze material; surface-mount termination. Tube packaging.

Position counts across the SIB series

Within the SIB series, the 10-position SIB-110-02-F-S-LC sits between the 8-position SIB-108-02-F-S-LC and the 12-position SIB-112-02-F-S-LC — the pitch, contact finish, and mounting style are shared across the series, so select the position count to match the circuit count. A 16-position option, SIB-116-02-F-S-LC, is also available in the same form factor.
