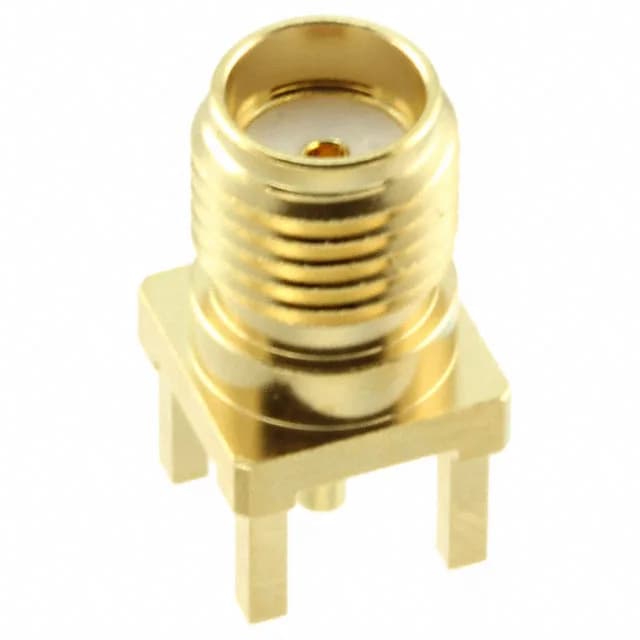

SMA connector, SMA-J-P-H-ST-TH1, Jack, Female Socket, 50 Ohm, 20 GHz, 335 V, Through Hole, Solder, Gold, Tray.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Connector type | Jack, Female Socket |
| Fastening type | Threaded |
| Voltage rating | 335 V |
| Frequency - max | 20 GHz |
| Operating temperature | -65°C~125°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Tray |
| Impedance | 50Ohm |
| Body finish | Gold |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
The SMA-J-P-H-ST-TH1: A PTFE dielectric holds the impedance steady through the interface. Threaded coupling locks the mate — no vibration loosening in field-installed coax runs or test setups.
The 20 GHz max frequency covers most S-band, C-band, and X-band links; above that the interface geometry starts to limit performance. 335 V rating is fine for signal-level RF but not for high-power transmit chains where voltage standoff needs more margin.
50 Ohm nominal, standard for RF signal paths. The PTFE dielectric and gold-plated centre contact maintain the impedance through the interface.
