Samtec Inc. SMB5-J-P-H-RA-TH1 — RF Cable Assemblies

Samtec SMB5-J-P-H-RA-TH1 SMB Jack, 50 Ohm, 4 GHz

MPNSMB5-J-P-H-RA-TH1
Active

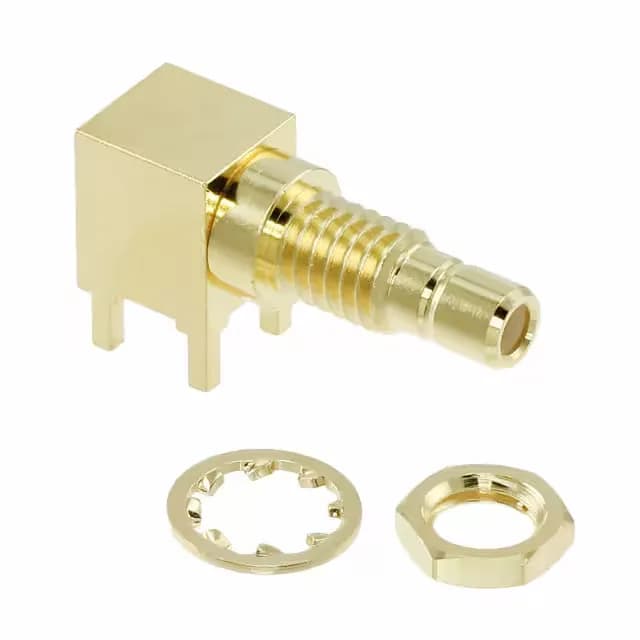

Samtec SMB5 series SMB jack, male pin, 50 Ohm, 4 GHz, right-angle panel mount through hole, gold body and center contact, includes lockwasher and nut.

$15.4900Ref. price · indicative, final on quote
Samtec Inc. SMB5-J-P-H-RA-TH1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

SMB5-J-P-H-RA-TH1 key specifications
ParameterValue
SeriesSMB5
MountingPanel Mount, Through Hole, Right Angle
Connector typeJack, Male Pin
Fastening typeSnap-On
Voltage rating250 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass

All specifications

SMB5-J-P-H-RA-TH1 additional specifications
ParameterValue
PackageTray
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishGold
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

SMB5-J-P-H-RA-TH1 — SMB Jack for Panel Feed-Through at 4 GHz

The Samtec SMB5-J-P-H-RA-TH1 is a 50 Ohm SMB jack with a male pin, built for panel-mount applications where the signal path needs to cross a bulkhead at a right angle. Rated to 4 GHz, this jack covers the lower microwave band — think GPS, ISM-band radios, and base station control links — where the SMB interface's smaller footprint beats an SMA for density.

Mounting Hardware Included — Lockwasher and Nut Ship with the Connector

The lockwasher sits between the nut and the panel face to keep the connector from loosening under vibration — a detail that matters when the cable assembly gets flexed during service. The bulkhead mounting feature (front side nut) means the connector installs from the outside of the enclosure; the nut tightens against the panel from the front, so you don't need access to the back side to secure it.

Frequently asked questions

What is the datasheet for SMB5-J-P-H-RA-TH1?

Engineers and buyers need full electrical and mechanical specs to validate fit and performance.

How much does SMB5-J-P-H-RA-TH1 cost?

Pricing is critical for sourcing and budget planning.

Where can I buy SMB5-J-P-H-RA-TH1?

Buyers need to know authorized distributors or direct purchase options.

Is SMB5-J-P-H-RA-TH1 in stock?

Immediate availability affects production schedules and replacement urgency.

Does SMB5-J-P-H-RA-TH1 include mounting hardware?

Avoids missing components during assembly; the datasheet shows it includes lockwasher and nut.

What is the equivalent part for SMB5-J-P-H-RA-TH1?

When sourcing or stockout, cross-reference to compatible parts is needed.
