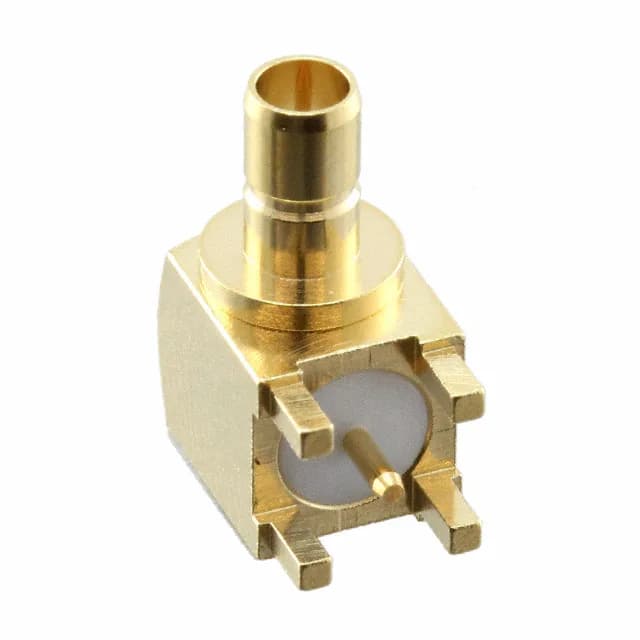

Samtec TRUE75™ SMB7H series, SMB jack male pin, 75 Ohm, 4 GHz, right-angle through-hole, gold body and center contact, snap-on fastening, 335 V, -65°C to 165°C.
| Parameter | Value |
|---|---|
| Series | TRUE75™ SMB7H |
| Mounting | Through Hole, Right Angle |
| Connector type | Jack, Male Pin |
| Fastening type | Snap-On |
| Voltage rating | 335 V |
| Frequency - max | 4 GHz |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Tray |
| Impedance | 75 Ohms |
| Body finish | Gold |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
The SMB7H-J-P-H-RA-TH1: The 75 Ohm impedance targets video, broadcast, and data-com signal paths where standard 50 Ohm coax would be a mismatch.
The gold body and gold-plated center contact resist corrosion in repeated mate cycles. Snap-on fastening means no torque wrench needed; just push the mating plug until it clicks.
Yes, it is a through-hole, right-angle mount — the connector body sits parallel to the board, saving vertical space.
