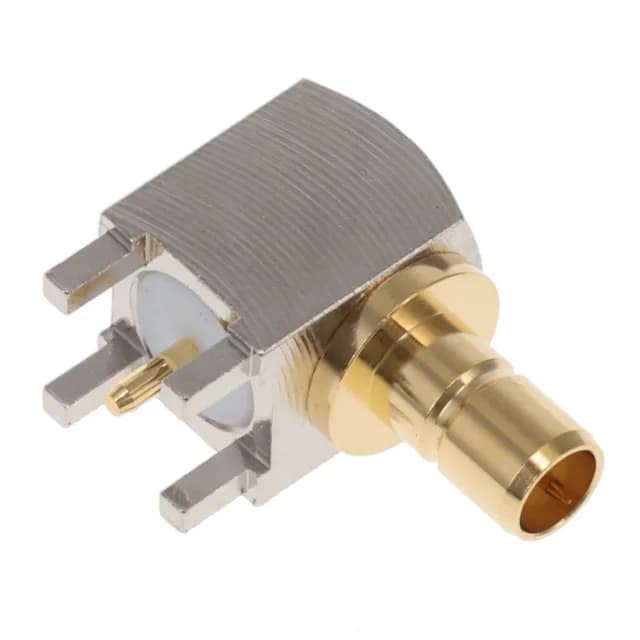

75-Ohm SMB Jack for Video and Broadband — Right-Angle Board Mount
The TRUE75™ SMB7H-J-P-HN-RA-TH1 is a 75-Ohm SMB jack, male pin, from the TRUE75™ SMB7H series. The 75-Ohm impedance and 4 GHz maximum frequency target video distribution, broadband.
Nickel Body, Gold Contact — 4 GHz Ceiling
The PTFE dielectric supports the 75-Ohm impedance across the band up to 4 GHz.
Nickel vs Gold Body — Same RF Performance
The sibling SMB7H-J-P-H-RA-TH1 shares the same TRUE75™ SMB7H series, 75-Ohm impedance, 4 GHz ceiling, right-angle through-hole mount, and gold center contact. The difference: the HN-RA-TH1 carries a nickel body finish and ships in bulk; the H-RA-TH1 has a gold body finish and ships in tray. For the RF signal path — impedance, frequency, and contact plating — they are identical. Choose by body finish preference or packaging requirement.
