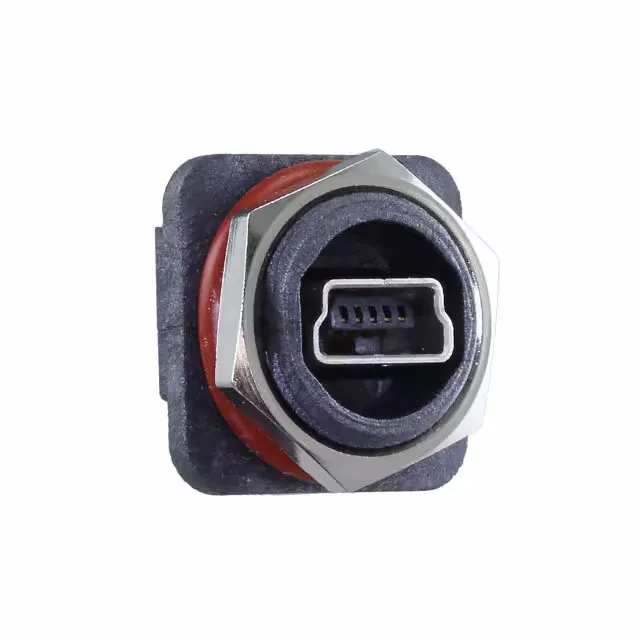

Samtec SPM-05-S-B-RA-PF USB mini B Receptacle, 5 Pos, IP68

MPNSPM-05-S-B-RA-PF
Active

Samtec SPM series USB - mini B receptacle, order code SPM-05-S-B-RA-PF, 5 contacts, 1.9 A per contact, 190 V, panel mount through-hole right-angle, solder termination, gold-plated contacts, shielded, IP68.

$7.25Ref. price · indicative, final on quote
SPM-05-S-B-RA-PF datasheet
StockIn Stock (16)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

SPM-05-S-B-RA-PF Technical Specifications
ParameterValue
SeriesSPM
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeUSB - mini B
Voltage - rated190V
Current rating1.9A per Contact
Positions5
Ingress protectionIP68 - Dust Tight, Waterproof
Mounting featureFlange, Horizontal
Operating temperature-55°C ~ 125°C
Insulation colorBlack
Shell (Shielding material)Phosphor Bronze
GenderReceptacle
PackageTube
FeaturesBoard Lock, Circular Threaded Coupling
ShieldingShielded
TerminationSolder
Mating cycles1000
Contact finishGold
Number of ports1

Product details

Panel-mount mini USB with IP68 sealing

The SPM-05-S-B-RA-PF is a 5-contact USB mini B receptacle from Samtec's SPM series, designed for panel-mount right-angle installation with a threaded circular coupling and board lock. Rated 1.9 A per contact at 190 V, the gold-plated contacts and shielded shell support USB 2.0 signal integrity in environments requiring IP68 dust-tight and waterproof sealing.

Mounting and sealing for harsh environments

The right-angle orientation with flange, horizontal mounting and threaded circular coupling secures the connector to the panel face, while the IP68 rating keeps the mated interface dust-tight and waterproof.
