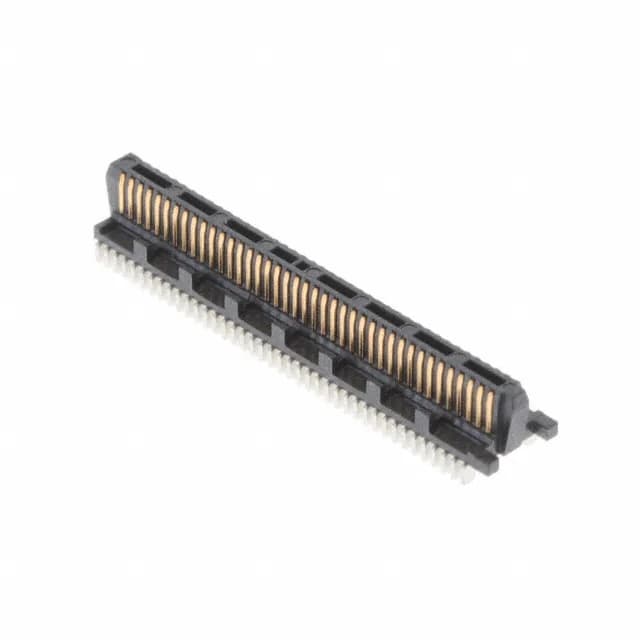

Samtec Inc. ST5-40-1.00-L-D-P-TR
MPNST5-40-1.00-L-D-P-TR
Active
CONN HDR 80POS SMD GOLD
$7.0500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesRazor Beam™ ST5
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Razor Beam™ ST5 |
| Mounting | Surface Mount |
| Connector type | Header, Center Strip Contacts |
| Height above board | 0.121\" (3.07mm) |
| Mated stacking heights | 4mm, 4.5mm |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 80 |
| Contact finish thickness | 10.0µin (0.25µm) |
