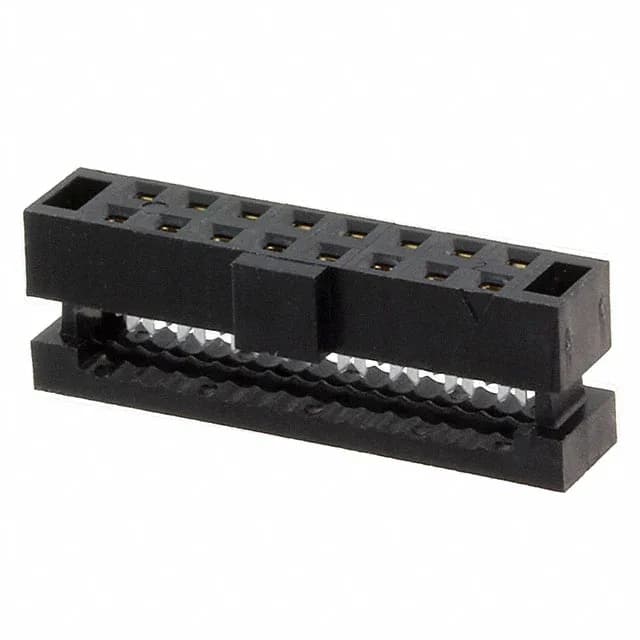

Samtec TCSD-08-01-N Tiger Eye IDC Receptacle, 16 Pos

MPNTCSD-08-01-N
Active

Samtec Tiger Eye™ TCSD series, TCSD-08-01-N, 16-circuit dual-row IDC receptacle, 0.079" (2.00 mm) pitch, 28 AWG ribbon cable, gold 30.0 µin contacts, free-hanging, push-pull latch, black housing, tube.

$5.5200Ref. price · indicative, final on quote
Samtec Inc. TCSD-08-01-N datasheet (PDF)
RoHSROHS3 Compliant
SeriesTiger Eye™ TCSD
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

TCSD-08-01-N specifications
ParameterValue
SeriesTiger Eye™ TCSD
Wire typeRibbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typePush-Pull
Wire gauge28 AWG
Cable terminationIDC
ColorBlack
Pitch0.079\" (2.00mm)
PackageTube
FeaturesFeed Through, Polarizing Key
Row spacing0.079\" (2.00mm)
Contact finishGold
Rows2
Positions16
Contact finish thickness30.0µin (0.76µm)

Product details

Tiger Eye IDC Receptacle for 28 AWG Ribbon Cable

The Samtec TCSD-08-01-N is a 16-position, dual-row IDC receptacle from the Tiger Eye™ TCSD series, designed for mass-termination to 28 AWG ribbon cable. The 0.079" (2.00 mm) pitch and matching 0.079" (2.00 mm) row spacing align directly with standard 16-conductor ribbon cable, making this a drop-in interconnect for board-to-cable harnesses where the signal count matches the circuit count. A push-pull fastening type secures the mate, and the polarizing key prevents misalignment during assembly.

It is specified for 28 AWG wire, which is the standard gauge for 0.079" pitch ribbon cable. The polarizing key and feed-through feature allow the cable to pass straight through the connector body, which simplifies routing in a harness.
