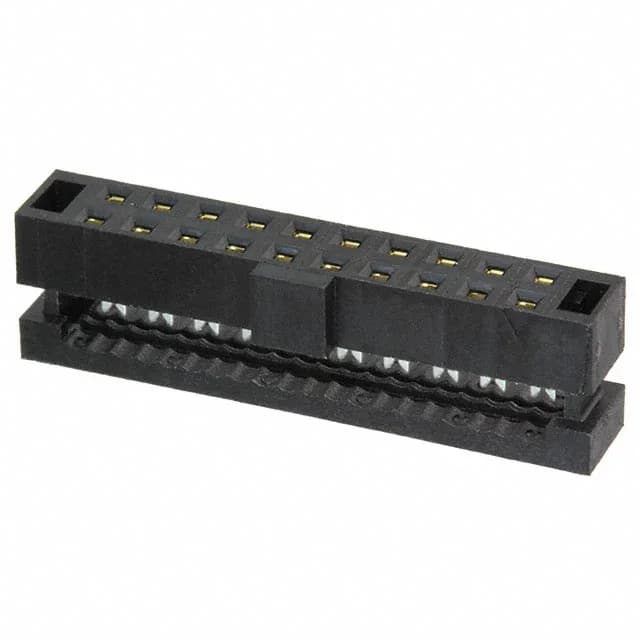

The Samtec TCSD-10-01-F-N is a 20-position, dual-row IDC receptacle from the Tiger Eye™ TCSD series, designed for mass-termination to 28 AWG ribbon cable. The black housing carries a polarizing key to prevent mis-mating and a feed-through feature that allows multiple receptacles to share the same cable run, typical for internal board-to-board or board-to-cable links in test equipment, industrial controllers, and data-acquisition systems.
Mating and Termination — IDC to Ribbon Cable
This receptacle mates with a matching Tiger Eye™ TCSD header (male pin strip) of the same 20-position, 2-row, 2.00 mm pitch layout. The push-pull fastening provides positive retention without hardware. Termination is IDC: the 28 AWG ribbon cable is pressed onto the insulation-displacement contacts in one operation — no wire prep beyond squaring the cable end. The free-hanging (in-line) mount suits cable-to-board harnesses where the receptacle floats on the wire rather than locking to a panel.
