Samtec Inc. USB-A-D-F-B-TH — USB / HDMI Cable Assemblies

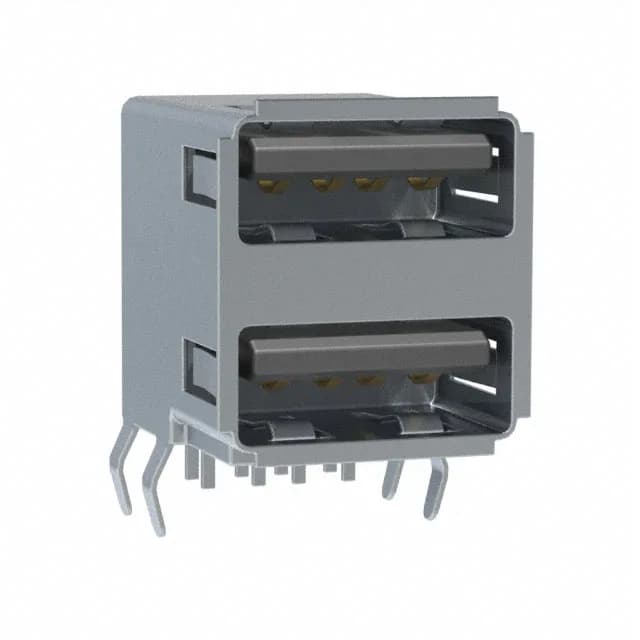

Samtec USB-A-D-F-B-TH USB 2.0 Type-A Stacked Receptacle

MPNUSB-A-D-F-B-TH
Active

Samtec USB-A series USB 2.0 Type-A stacked receptacle, order code USB-A-D-F-B-TH, 8 contacts, 2 ports, 30VAC, gold-plated contacts, through-hole right-angle, solder termination, board lock.

$1.9400Ref. price · indicative, final on quote
Samtec Inc. USB-A-D-F-B-TH datasheet (PDF)
RoHSROHS3 Compliant
SeriesUSB-A
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

USB-A-D-F-B-TH specifications
ParameterValue
SeriesUSB-A
MountingThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A), Stacked
Voltage - rated30VAC
Positions8
Mounting featureHorizontal
Operating temperature-50°C ~ 85°C
Insulation colorBlack
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
FeaturesBoard Lock
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports2

Product details

Two-port Type-A with board lock

The USB-A-D-F-B-TH is the 8-contact, 2-port stacked member of Samtec's USB-A receptacle line, rated USB 2.0. Gold-plated contacts are rated for 1500 mating cycles, and the through-hole right-angle mounting with board lock holds the connector in place during reflow and against cable insertion force.

Stacked vs single-port fit

The USB-A-D-F-B-TH stacks two Type-A receptacles in a single 8-contact body. The single-port USB-A-S-F-B-TH carries 4 contacts and one port — both share the same 30VAC rating, gold plating, and board lock feature, so the choice comes down to the number of downstream USB devices the panel needs.

Frequently asked questions

What is the closest functional second-source to USB-A-D-F-B-TH?

The USB-A-D-S-B-TH is a same-series peer with the same 8 contacts, 2 ports, gold plating, and 1500 mating cycles. The primary difference is the shielding — the USB-A-D-F-B-TH is unshielded, while the USB-A-D-S-B-TH carries a shielded shell. Verify the EMI requirement before swapping.
