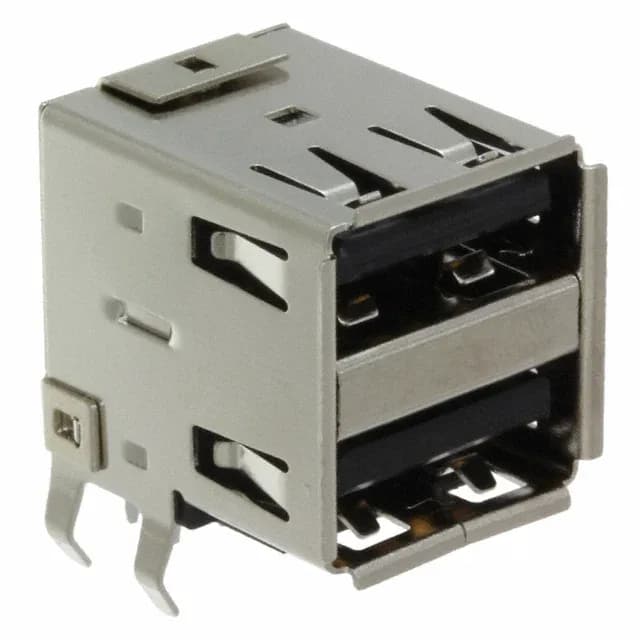

Samtec USB-A series USB 2.0 Type-A receptacle, order code USB-A-D-S-B-TH, 8 contacts, dual port, through-hole right-angle, solder termination, gold-plated contacts, board lock, 30 VAC rated.
| Parameter | Value |
|---|---|
| Series | USB-A |
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30VAC |
| Positions | 8 |
| Mounting feature | Horizontal |
| Operating temperature | -50°C~85°C |
| Insulation color | Black |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 2 |
The USB-A-D-S-B-TH is the 8-contact dual-port member of Samtec's USB-A Type-A receptacle line, supporting USB 2.0 data rates with gold-plated contacts rated for 1500 mating cycles. Mounts through-hole right-angle with a board lock for reflow retention; rated 30 VAC and housed in a UL94 V-0 rated black insulator that operates from -50°C to 85°C.
The USB-A-D-F-B-TH is a same-series stacked 8-contact receptacle with identical gold plating, 1500 mating cycles, and board lock — confirm the panel cutout and orientation match before substituting.
