Samtec Inc. USB-A-S-F-B-SM2 — USB / HDMI Cable Assemblies

Samtec USB-A-S-F-B-SM2 USB 2.0 Receptacle, SMT RA

MPNUSB-A-S-F-B-SM2
Active

Samtec USB-A series USB 2.0 Type-A receptacle, order code USB-A-S-F-B-SM2, 4 contacts, single port, 30 VAC, gold-plated contacts, surface-mount right-angle, solder termination, tray.

$2.1800Ref. price · indicative, final on quote
Samtec Inc. USB-A-S-F-B-SM2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesUSB-A
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

USB-A-S-F-B-SM2 specifications
ParameterValue
SeriesUSB-A
MountingSurface Mount, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC
Positions4
Mounting featureHorizontal
Operating temperature-50°C~85°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
FeaturesBoard Guide, Solder Retention
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

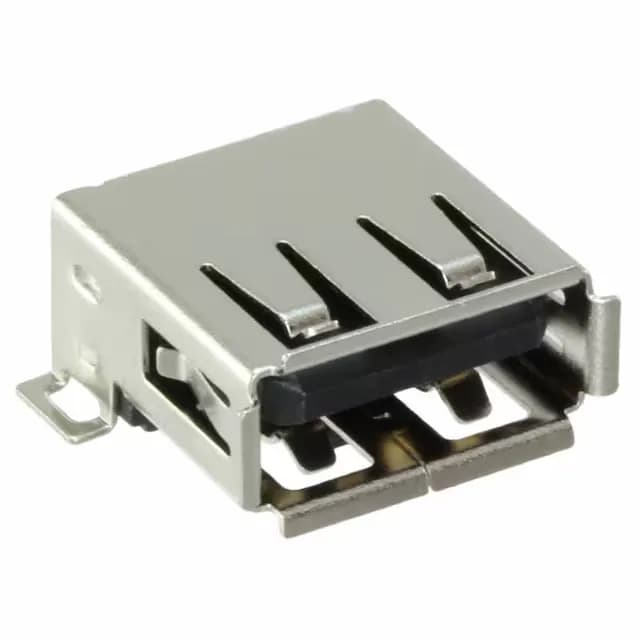

USB 2.0 Type-A receptacle, SMT right-angle

The USB-A-S-F-B-SM2 is Samtec's 4-contact USB 2.0 Type-A receptacle in the USB-A series, mounted surface-mount right-angle with board guide and solder retention features. Rated 30 VAC, gold-plated contacts, and rated for 1500 mating cycles. Housing is UL94 V-0 rated, operating from -50°C to 85°C.

Position count and packaging across the series

The USB-A-S-F-B-SM2 (tray) shares the same 4-contact USB 2.0 Type-A receptacle design as the USB-A-S-F-B-SM2-TR (tape & reel) and the USB-A-S-F-B-TH-R (through-hole, tray) — all rated 1500 cycles, gold contacts, 30 VAC. The USB-A-S-S-B-SM2 is a single-port shielded version in tray. Packaging choice (tray vs tape & reel) is the main procurement difference; the board footprint and mating half are identical across the series.
