Samtec Inc. USB-A-S-F-B-SM2-TR

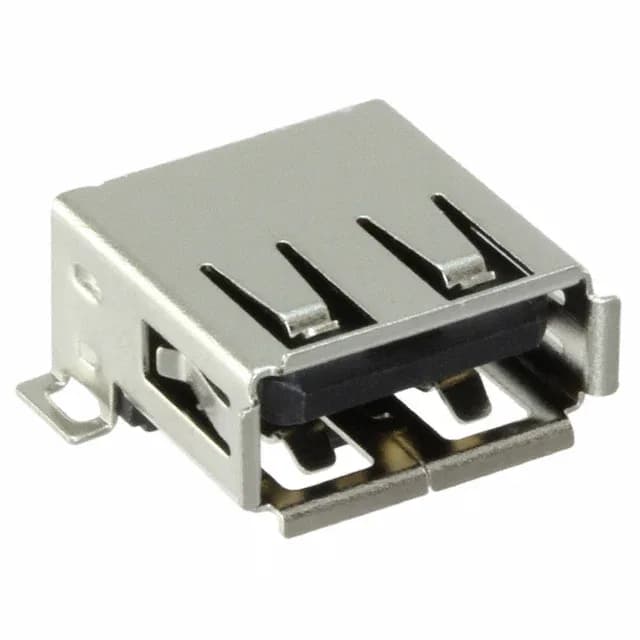

Samtec USB-A-S-F-B-SM2-TR USB 2.0 Receptacle, 4-Pin SMD RA

MPN USB-A-S-F-B-SM2-TR
Active

Samtec USB-A series USB 2.0 Type-A receptacle, order code USB-A-S-F-B-SM2-TR, 4 contacts, gold-plated contacts, 30VAC, surface-mount right-angle, solder termination, Tape & Reel.

$2.1800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesUSB-A
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

USB-A-S-F-B-SM2-TR specifications
ParameterValue
SeriesUSB-A
MountingSurface Mount, Right Angle; Through Hole
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC
Positions4
Mounting featureHorizontal
Operating temperature-50°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide, Solder Retention
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB 2.0 Type-A receptacle, 4 contacts, SMT right-angle

The USB-A-S-F-B-SM2-TR is Samtec's 4-contact USB 2.0 Type-A receptacle in the USB-A series, mounted horizontally with surface-mount right-angle termination. The connector is ROHS3 compliant.

Mating cycles and board retention features

Rated for 1500 mating cycles, the receptacle suits applications requiring frequent reconnection. Board guide and solder retention features aid alignment and hold during reflow.

MPN
USB-A-S-F-B-SM2-TR
