Samtec Inc. USB-A-S-F-W-SM2-R-TR — USB / HDMI Cable Assemblies

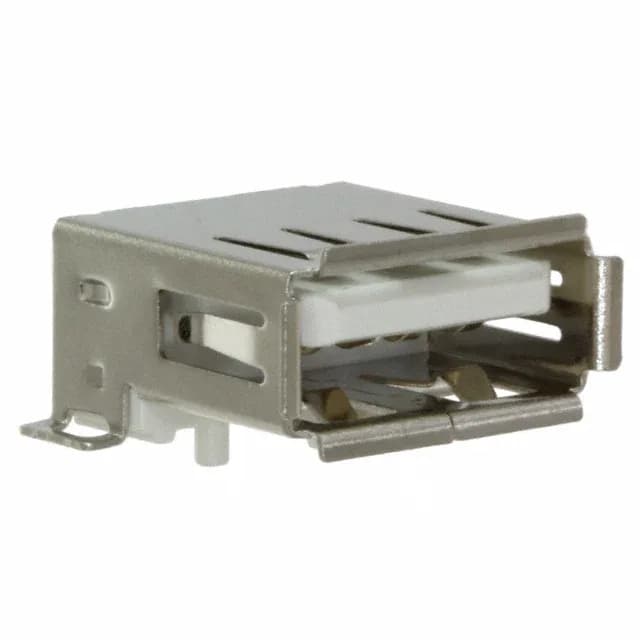

Samtec USB-A-S-F-W-SM2-R-TR USB-A Receptacle, 4-Contact

MPNUSB-A-S-F-W-SM2-R-TR
Active

Samtec USB-A receptacle, order code USB-A-S-F-W-SM2-R-TR, USB 2.0, 4 contacts, single port, 30VAC, gold-plated contacts, surface-mount right-angle, solder termination, Tape & Reel.

$2.1800Ref. price · indicative, final on quote
Samtec Inc. USB-A-S-F-W-SM2-R-TR datasheet (PDF)
RoHSROHS3 Compliant
SeriesUSB-A
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

USB-A-S-F-W-SM2-R-TR specifications
ParameterValue
SeriesUSB-A
MountingSurface Mount, Right Angle; Through Hole
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC
Positions4
Mounting featureHorizontal
Operating temperature-50°C ~ 85°C
Insulation colorWhite
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide, Solder Retention
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB 2.0 Type-A receptacle in Tape & Reel

The USB-A-S-F-W-SM2-R-TR is the Tape & Reel packaged member of Samtec's USB-A series, a USB 2.0 Type-A receptacle with 4 contacts. Gold-plated contacts are rated for 1500 mating cycles, and the operating temperature range spans -50°C to 85°C.

Within the USB-A series, the USB-A-S-F-W-SM2-R-TR shares the 4-contact count and USB 2.0 specification with siblings USB-A-S-F-W-SM2-TR (Tape & Reel / Cut Tape / Digi-Reel) and USB-A-S-F-W-SM2 (tray). The shielded variant USB-A-S-S-W-SM2-TR adds a copper alloy shell for EMI containment, while the unshielded USB-A-S-F-W-SM2-R-TR omits the shell — the board footprint and mounting remain shared across the series.

Frequently asked questions

What is the difference between USB-A-S-F-W-SM2-R-TR and USB-A-S-F-W-SM2-TR?

The USB-A-S-F-W-SM2-R-TR ships in Tape & Reel only; the USB-A-S-F-W-SM2-TR is available in Tape & Reel, Cut Tape, and Digi-Reel packaging. All other specs — 4 contacts, USB 2.0, gold plating, 1500 mating cycles — are identical.

What compliance documentation does Samtec provide for USB-A-S-F-W-SM2-R-TR?

Samtec Inc. lists RoHS3 compliance for the USB-A-S-F-W-SM2-R-TR.
