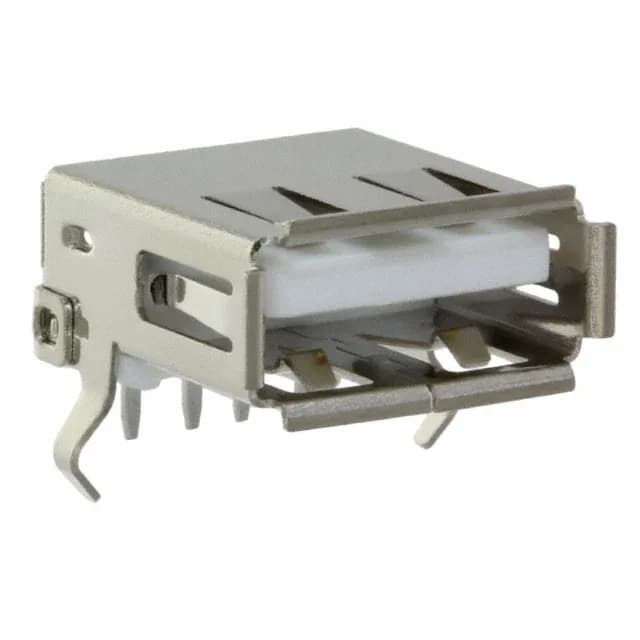

Samtec USB-A-S-F-W-TH USB-A Receptacle, 4 Pos, R/A

MPNUSB-A-S-F-W-TH
Active

Samtec Inc. USB-A series USB-A (USB TYPE-A) receptacle, order code USB-A-S-F-W-TH, 4 contacts, single port, USB 2.0, 30VAC, gold contact finish, through-hole right-angle, solder termination, board lock.

$1.0500Ref. price · indicative, final on quote
Samtec Inc. USB-A-S-F-W-TH datasheet (PDF)
RoHSROHS3 Compliant
SeriesUSB-A
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

USB-A-S-F-W-TH specifications
ParameterValue
SeriesUSB-A
MountingThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC
Positions4
Mounting featureHorizontal
Operating temperature-50°C~85°C
Insulation colorWhite
Shell (Shielding material)Brass
Material flammability ratingUL94 V-0
GenderReceptacle
PackageBulk
FeaturesBoard Lock
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Contact system and board lock

The USB-A-S-F-W-TH is a 4-contact USB 2.0 Type-A receptacle from Samtec's USB-A series, rated for 1500 mating cycles with gold-plated contacts. Board locks on the through-hole right-angle mount hold the connector during reflow and resist shear from cable strain.

Within the USB-A series the USB-A-S-F-W-TH's 4 contacts match the standard Type-A pinout — the same count as the surface-mount USB-A-S-F-W-SM2, but the through-hole right-angle termination and board lock differ from the SM2's board guide and solder retention.
