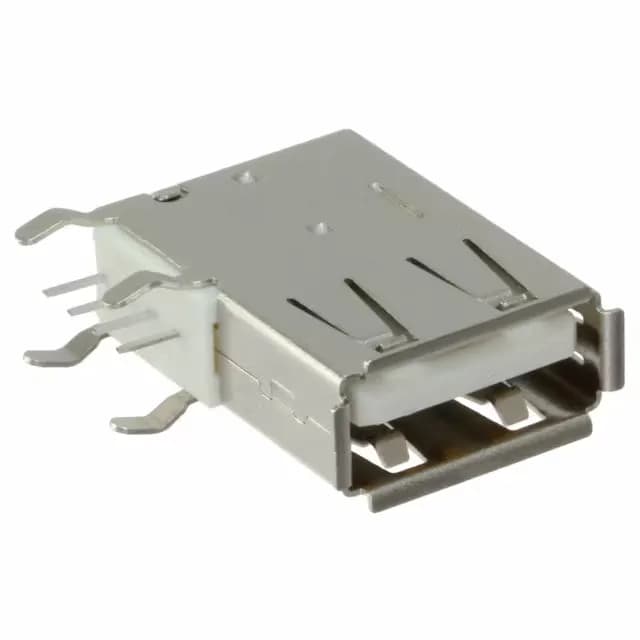

Samtec USB-A-S-F-W-VU USB 2.0 Receptacle, 4 Pos, R/A

MPNUSB-A-S-F-W-VU
Active

Samtec USB-A series receptacle, order code USB-A-S-F-W-VU, USB 2.0 Type-A, 4 contacts, single port, gold-plated contacts, through-hole right-angle, solder termination, board lock, tray.

$1.7500Ref. price · indicative, final on quote
Samtec Inc. USB-A-S-F-W-VU datasheet (PDF)
RoHSROHS3 Compliant
SeriesUSB-A
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

USB-A-S-F-W-VU specifications
ParameterValue
SeriesUSB-A
MountingThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC
Positions4
Mounting featureVertical
Operating temperature-50°C~85°C
Insulation colorWhite
Shell (Shielding material)Phosphor Bronze
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
FeaturesBoard Lock
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Contact system and mating durability

The USB-A-S-F-W-VU is a 4-contact USB 2.0 Type-A receptacle from Samtec's USB-A series. Gold-plated contacts are rated for 1500 mating cycles, supporting repeated connect-disconnect duty in field-service or test applications. Rated 30 VAC, the connector mounts through-hole right-angle with a board lock for solder-joint strain relief. The white insulation and phosphor bronze shell are rated UL94 V-0.

Mounting orientation and board fit

Within the Samtec USB-A series, the USB-A-S-F-W-VU (vertical mounting, right-angle orientation) differs from the USB-A-S-F-W-SM2 (horizontal mounting) and the USB-A-S-F-W-TH (horizontal mounting, bulk package). All three share the 4-contact USB 2.0 Type-A footprint, gold plating, and 1500-cycle rating — the orientation and board-lock feature are the selection drivers.

Frequently asked questions

What is the closest functional second-source within the same series?

The USB-A-S-F-W-SM2 is a horizontal-mount sibling with the same 4 contacts, gold plating, and 1500-cycle rating. The mounting orientation differs — the USB-A-S-F-W-VU is vertical right-angle; the USB-A-S-F-W-SM2 is horizontal. Verify the board keep-out and panel cutout before substituting.

What compliance documentation does Samtec provide for this part?

The USB-A-S-F-W-VU is ROHS3 compliant. Samtec provides a datasheet and product drawing for the USB-A series.
