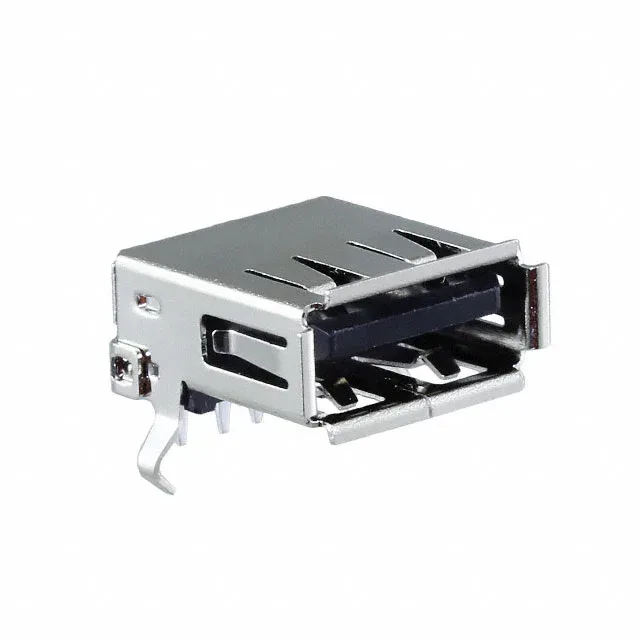

Samtec USB-A series USB 2.0 Type-A receptacle, order code USB-A-S-S-B-TH, 4 contacts, single port, 30VAC, gold-plated contacts, shielded, through-hole right-angle, solder termination, board lock.
| Parameter | Value |
|---|---|
| Series | USB-A |
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30VAC |
| Positions | 4 |
| Mounting feature | Horizontal |
| Operating temperature | -50°C ~ 85°C |
| Insulation color | Black |
| Shell (Shielding material) | Brass |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The USB-A-S-S-B-TH is Samtec's 4-contact USB 2.0 Type-A receptacle in the USB-A series, rated 30VAC with gold-plated contacts and shielded construction. It mounts through-hole right-angle with a board lock feature for retention during soldering and vibration service.
Rated for 1500 mating cycles — the gold contact finish supports repeated insertion without exposing base metal.
The part is ROHS3 Compliant and the housing material meets UL94 V-0.
Both are Samtec USB-A series receptacles with the same 4-contact count, 30VAC rating, gold plating, and 1500 mating cycles. The USB-A-S-F-B-TH is functionally identical — the difference is the shell finish (USB-A-S-F-B-TH is not listed as shielded in the peer summary). Verify the mating half and board layout before substitution.
