Samtec Inc. USB-A-S-S-B-VU — USB / HDMI Cable Assemblies

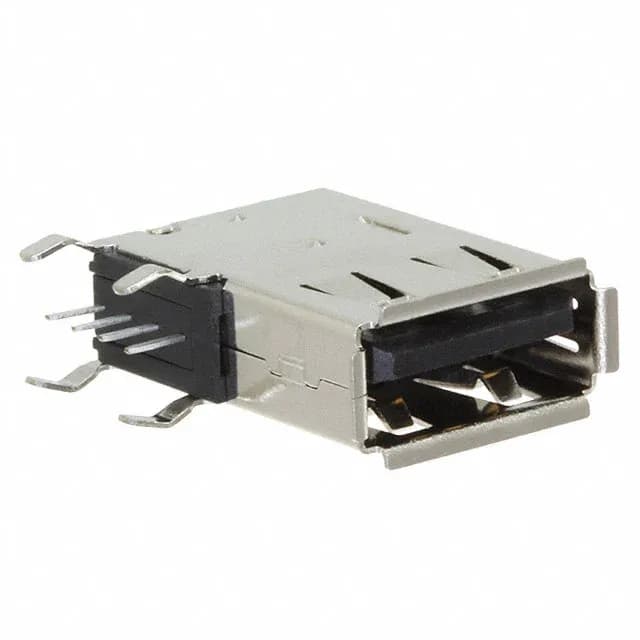

Samtec USB-A-S-S-B-VU USB-A Receptacle, 4-Pos, R/A

MPNUSB-A-S-S-B-VU
Active

Samtec USB-A series USB-A (USB TYPE-A) receptacle, order code USB-A-S-S-B-VU, 4 contacts, single port, USB 2.0, right-angle through-hole, gold contact finish, solder termination, board lock.

$2.4000Ref. price · indicative, final on quote
Samtec Inc. USB-A-S-S-B-VU datasheet (PDF)
RoHSROHS3 Compliant
SeriesUSB-A
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

USB-A-S-S-B-VU specifications
ParameterValue
SeriesUSB-A
MountingThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC
Positions4
Mounting featureVertical, Flag
Operating temperature-50°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Phosphor Bronze
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
FeaturesBoard Lock
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Right-angle USB-A with board lock

The USB-A-S-S-B-VU is the 4-contact right-angle through-hole receptacle in Samtec's USB-A series, specified for USB 2.0.

Within the USB-A series the USB-A-S-S-B-VU shares the 4-contact count and gold plating with the USB-A-S-F-B-VU (vertical flag), USB-A-S-S-B-TH (horizontal), and USB-A-S-S-B-SM2 (horizontal with board guide and solder retention) — the mounting orientation and additional features differentiate the selection, not the contact count or plating grade.

Frequently asked questions

How do I get current pricing and availability for USB-A-S-S-B-VU?

Pricing and stock are confirmed at RFQ against the BOM quantity. The part ships in tray packaging.

Will USB-A-S-S-B-VU drop into a panel that was specified around USB-A-S-F-B-VU without rewiring?

Both are 4-contact USB-A receptacles with gold plating and a 30VAC rating, but the USB-A-S-F-B-VU is a vertical flag mount while the USB-A-S-S-B-VU is right-angle through-hole — the mounting footprint and orientation differ, so a board layout change is required.

What compliance documentation does Samtec Inc. provide for USB-A-S-S-B-VU?

The USB-A-S-S-B-VU is ROHS3 Compliant per Samtec's lifecycle record.
