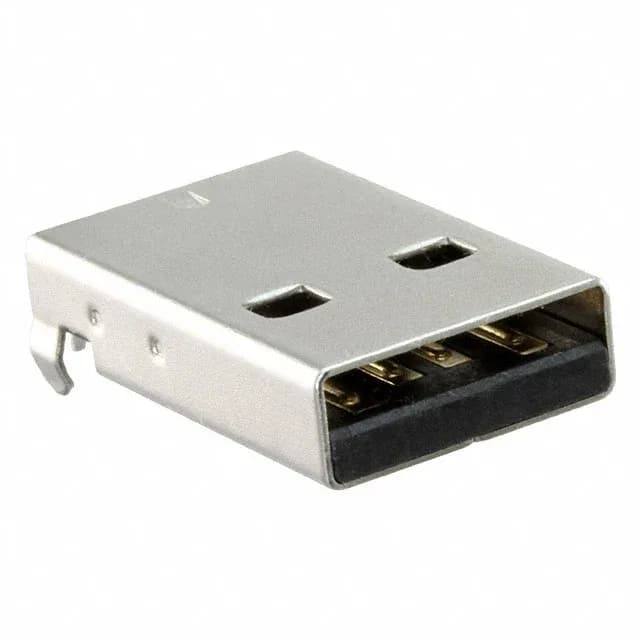

Samtec USB-A plug, order code USB-AM-S-F-B-TH, 4 contacts, USB 2.0, 30VAC, gold-plated contacts, shielded, through-hole right-angle, solder termination, board lock.
| Parameter | Value |
|---|---|
| Series | USB-A |
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30VAC |
| Positions | 4 |
| Mounting feature | Horizontal |
| Operating temperature | -50°C~85°C |
| Insulation color | Black |
| Shell (Shielding material) | Phosphor Bronze |
| Gender | Plug |
| Package | Bulk |
| Features | Board Lock |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The USB-AM-S-F-B-TH is a 4-contact USB-A plug in Samtec's USB-A series, USB 2.0 rated, with a shielded phosphor bronze shell and gold-plated contacts. Rated 30VAC, it mounts through-hole right-angle with a board lock for retention during wave solder and operates from -50°C to 85°C.
It is a USB-A (USB TYPE-A) plug, 4 contacts, USB 2.0 specification.
