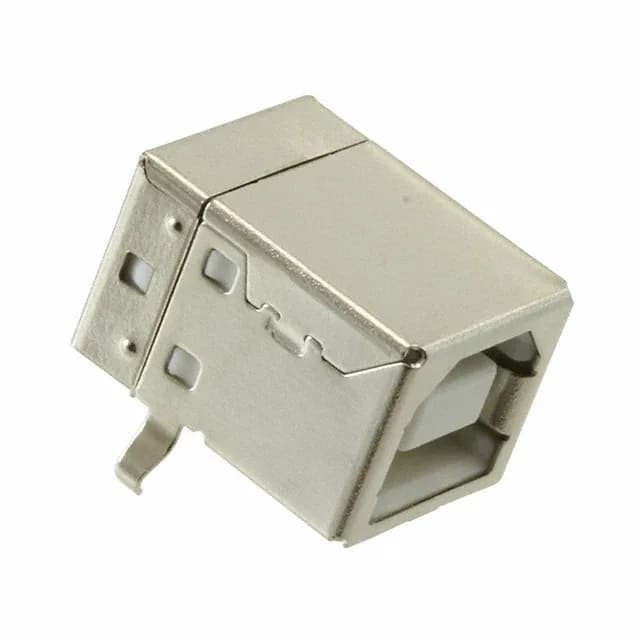

Samtec USB-B-S-F-B-TH USB 2.0 Type-B Receptacle, 4 Pos R/A

MPNUSB-B-S-F-B-TH
Active

Samtec USB-B series USB 2.0 Type-B receptacle, order code USB-B-S-F-B-TH, 4 contacts, single port, right-angle through-hole, gold-plated contacts, steel shell with board lock, UL94 V-0, tray.

$1.3200Ref. price · indicative, final on quote
Samtec Inc. USB-B-S-F-B-TH datasheet (PDF)
RoHSROHS3 Compliant
SeriesUSB-B
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

USB-B-S-F-B-TH specifications
ParameterValue
SeriesUSB-B
MountingThrough Hole, Right Angle
Connector typeUSB-B (USB TYPE-B)
Voltage - rated30VAC
Positions4
Mounting featureHorizontal
Operating temperature-50°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Steel
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
FeaturesBoard Lock
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Right-angle Type-B with board lock

The USB-B-S-F-B-TH is the 4-contact right-angle through-hole member of Samtec's USB-B receptacle series, specified for USB 2.0 signal duty. Gold-plated contacts rated 30VAC, steel shell with board lock for solder-joint strain relief during cable insertion and extraction, rated for 1500 mating cycles.

Orientation and mounting options across the series

Within the USB-B series the USB-B-S-F-B-TH's right-angle horizontal mounting sits between the vertical through-hole USB-B-S-F-B-VT and the right-angle surface-mount USB-B-S-F-B-SM — the 4-contact count, gold plating, and 30VAC rating are shared across the three, so the mounting orientation and termination method are the selection axis.

Frequently asked questions

What is the gender and connector type of the USB-B-S-F-B-TH?

It is a USB-B (USB Type-B) receptacle, 4 contacts, single port.

Will the USB-B-S-F-B-TH drop into a panel specified for the USB-B-S-F-B-TH-TR without rewiring?

Yes — the USB-B-S-F-B-TH-TR is the same receptacle in Tape & Reel packaging; the connector body, contact count, orientation, and footprint are identical. The only difference is the shipping package.

What compliance documentation does Samtec provide for the USB-B-S-F-B-TH?

Samtec certifies ROHS3 compliance for this part.
