Samtec Inc. USB-B-S-F-B-TH-TR — USB / HDMI Cable Assemblies

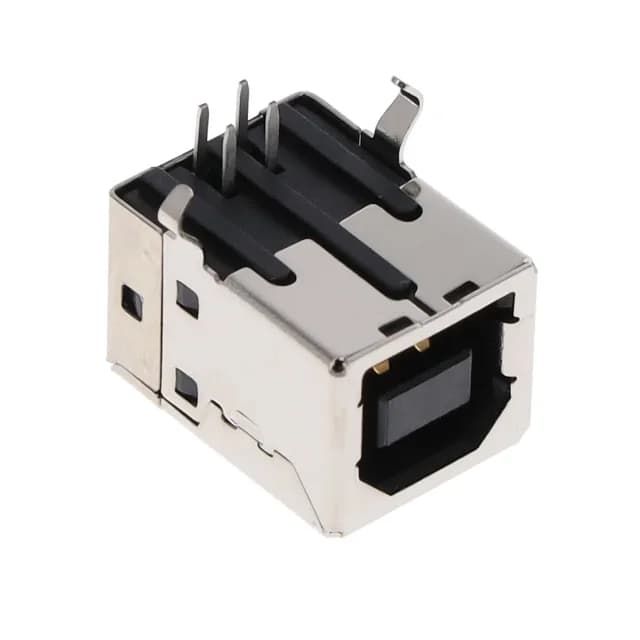

Samtec USB-B-S-F-B-TH-TR USB 2.0 Receptacle, 4 contacts

MPNUSB-B-S-F-B-TH-TR
Active

Samtec USB-B series USB 2.0 Type-B receptacle, order code USB-B-S-F-B-TH-TR, 4 contacts, 30VAC, gold-plated contacts, through-hole right-angle, solder termination, board lock, Tape & Reel.

$1.3200Ref. price · indicative, final on quote
Samtec Inc. USB-B-S-F-B-TH-TR datasheet (PDF)
RoHSROHS3 Compliant
SeriesUSB-B
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

USB-B-S-F-B-TH-TR specifications
ParameterValue
SeriesUSB-B
MountingThrough Hole, Right Angle
Connector typeUSB-B (USB TYPE-B)
Voltage - rated30VAC
Positions4
Mounting featureHorizontal
Operating temperature-50°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Steel
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Lock
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB 2.0 Type-B with board lock

The USB-B-S-F-B-TH-TR is a Samtec USB-B series USB 2.0 Type-B receptacle with 4 contacts and gold-plated contacts rated for 1500 mating cycles. It mounts through-hole right-angle, carries a board lock for PCB retention, and is rated 30VAC.

Board lock vs tray sibling

The USB-B-S-F-B-TH-TR ships in Tape & Reel with a board lock. The tray-packaged USB-B-S-F-B-TH shares the same 4 contacts, gold plating, 1500 mating cycles, and through-hole right-angle mounting — the difference is the board lock and reel packaging for automated pick-and-place.

Frequently asked questions

What compliance documentation is available for USB-B-S-F-B-TH-TR?

The part is ROHS3 Compliant. The housing material has a UL94 V-0 flammability rating.
