Samtec Inc. USB-B-S-S-B-SM-TR — USB / HDMI Cable Assemblies

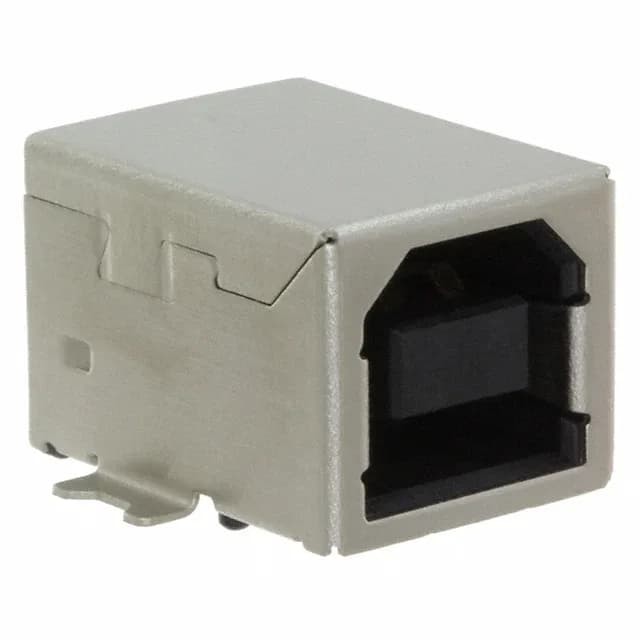

Samtec USB-B-S-S-B-SM-TR USB 2.0 Type-B Receptacle

MPNUSB-B-S-S-B-SM-TR
Active

Samtec USB-B series USB 2.0 Type-B receptacle, order code USB-B-S-S-B-SM-TR, 4 contacts, 30VAC, gold-plated contacts, surface-mount right-angle, solder termination, Tape & Reel.

$2.8300Ref. price · indicative, final on quote
Samtec Inc. USB-B-S-S-B-SM-TR datasheet (PDF)
RoHSROHS3 Compliant
SeriesUSB-B
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

USB-B-S-S-B-SM-TR specifications
ParameterValue
SeriesUSB-B
MountingSurface Mount, Right Angle
Connector typeUSB-B (USB TYPE-B)
Voltage - rated30VAC
Positions4
Mounting featureHorizontal
Operating temperature-50°C~85°C
Insulation colorBlack
Shell (Shielding material)Steel
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Guide, Solder Retention
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Right-angle SMT Type-B receptacle

The USB-B-S-S-B-SM-TR is a 4-contact USB 2.0 Type-B receptacle from Samtec's USB-B series, mounted horizontally via surface-mount right-angle solder tails. Gold-plated contacts rated for 1500 mating cycles and 30VAC; the steel shell provides shielding and includes board guide and solder retention features.

Bulk-packaged sibling for low-volume builds

The USB-B-S-S-B-SM-TR ships on Tape & Reel; the functionally identical USB-B-S-S-B-SM is the same 4-contact, gold-plated, right-angle SMT receptacle supplied in bulk — the electrical and mechanical footprint are shared, so the choice is packaging volume.

Frequently asked questions

What compliance documentation does Samtec provide for USB-B-S-S-B-SM-TR?

The part is ROHS3 Compliant per Samtec's listing.
