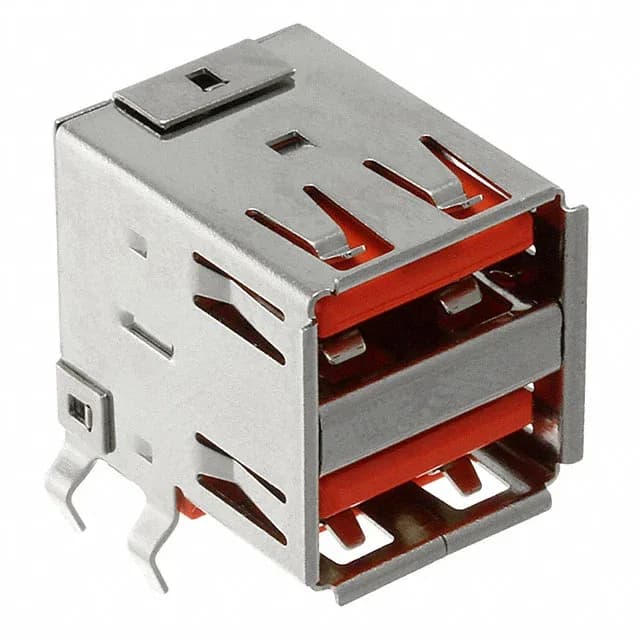

Samtec USBR series USB-A receptacle, order code USBR-A-D-S-O-TH, 8 contacts, dual port, USB 2.0, gold-plated contacts, through-hole right-angle, solder termination, board lock.
| Parameter | Value |
|---|---|
| Series | USBR |
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30VAC |
| Positions | 8 |
| Mounting feature | Horizontal |
| Operating temperature | -50°C ~ 85°C |
| Insulation color | Orange |
| Gender | Receptacle |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 2 |
The USBR-A-D-S-O-TH is the 8-contact dual-port member of Samtec's USBR USB-A receptacle series, rated for 1500 mating cycles with gold-plated contacts. It carries a USB 2.0 specification, 30 VAC rating, and mounts through-hole right-angle with a board lock for retention during reflow and vibration.
The USBR-A-D-S-O-TH is ROHS3 Compliant per Samtec's lifecycle record.
Both are 8-contact dual-port USB-A receptacles with the same board lock, through-hole right-angle mounting, and USB 2.0 spec — the D-F-O-TH suffix indicates a different contact finish or packaging, but the footprint and mating interface are shared.
