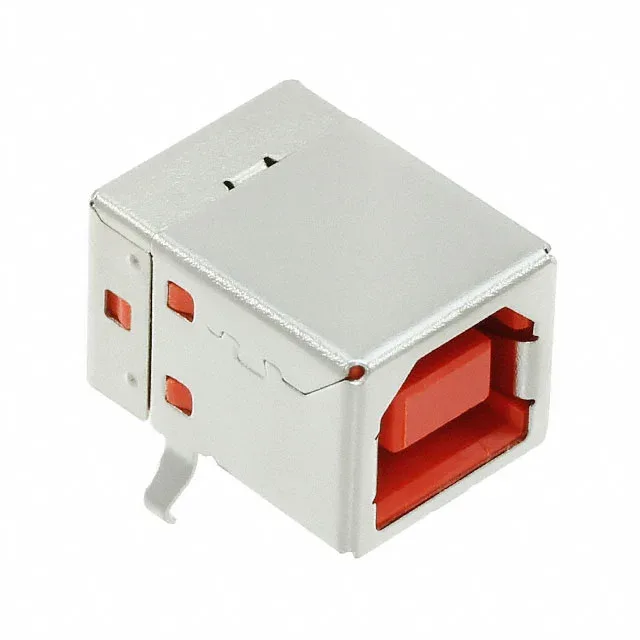

USBR-B-S-F-O-TH — Samtec Inc. product photo
Samtec Inc.

Samtec USBR-B-S-F-O-TH USB-B Receptacle, 4-Pos, R/A

MPNUSBR-B-S-F-O-TH
Active

Samtec USBR series USB-B receptacle, order code USBR-B-S-F-O-TH, 4 contacts, USB 2.0, gold-plated contacts, through-hole right-angle, solder termination, board lock, 1500 mating cycles.

$1.39Ref. price · indicative, final on quote
USBR-B-S-F-O-TH datasheet
StockIn Stock (24)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

USBR-B-S-F-O-TH Technical Specifications
ParameterValue
SeriesUSBR
Mounting typeThrough Hole, Right Angle
Connector typeUSB-B (USB TYPE-B)
Voltage - rated30VAC
Positions4
Mounting featureHorizontal
Operating temperature-50°C ~ 85°C
Insulation colorOrange
Shell (Shielding material)Phosphor Bronze, Steel
GenderReceptacle
PackageTray
FeaturesBoard Lock
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Right-angle USB-B with board lock

The USBR-B-S-F-O-TH is the 4-contact USB-B receptacle in Samtec's USBR series, mounted through-hole right-angle for horizontal cable exit. Gold-plated contacts, USB 2.0 signal rating, and a board lock for solder-joint strain relief during reflow and field service.

Vertical vs right-angle orientation

Within the USBR series the USBR-B-S-F-O-TH (right-angle) differs from the USBR-B-S-F-O-VT (vertical) only in mounting orientation — the 4-contact count, gold plating, 30VAC rating, and 1500 mating cycles are shared across both.

Frequently asked questions

How do I get current pricing and availability for USBR-B-S-F-O-TH?

Pricing and stock are quoted per RFQ against the BOM quantity; no shelf stock is held.

Will USBR-B-S-F-O-TH drop into a panel that was specified around USBR-B-S-F-O-VT without rewiring?

No — the USBR-B-S-F-O-VT is a vertical-mount version; the right-angle USBR-B-S-F-O-TH requires a different board layout and panel cutout orientation.
