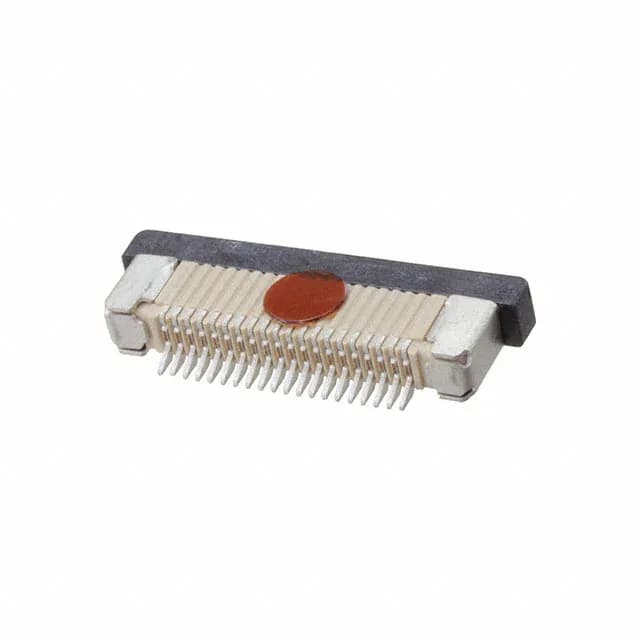

ZF5S-20-01-T-WT-K-TR - Samtec Inc.
MPNZF5S-20-01-T-WT-K-TR
Active
CONN FFC BOTTOM 20POS 0.5MM R/A
$2.6700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesZF5S
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ZF5S |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight |
| Flat flex type | FFC |
| Connector (Contact type) | Contacts, Bottom |
| Current rating | 1.8A per Contact |
| Operating temperature | -55°C ~ 105°C |
| Housing color | Natural |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP) |
| Actuator material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Height above board | 0.083\" (2.10mm) |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place Cap, Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 20 |
