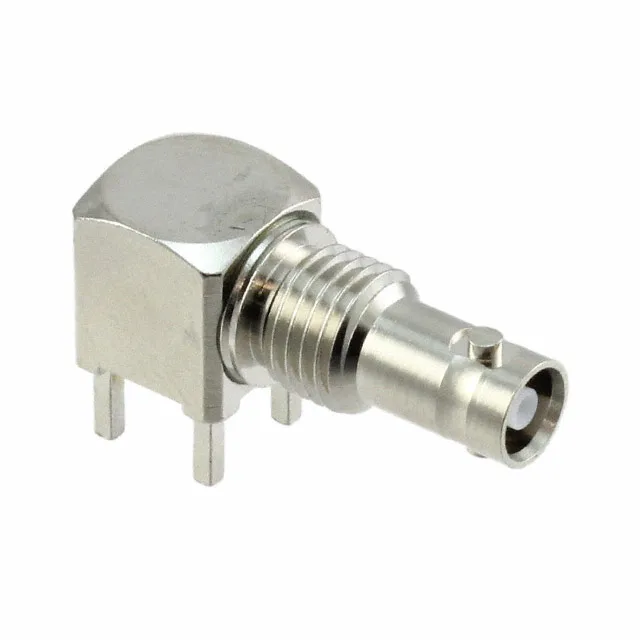

HDBNC-J-P-GN-ST-BH1
Samtec Inc.
Panel Mount, Through HoleTrayTRUE75™ HDBNC
Ref. price$8.2700
Lead time on requestGet quote
Samtec Inc. HDBNC Series
2 variants · Samtec Inc.
About the Samtec Inc. HDBNC Series
The Samtec Inc. HDBNC Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common body finish of Nickel, body material of Brass and cable group of -. Variants differ by frequency - max, includes and mounting, so you can match the exact frequency - max your application requires using the selection guide below. All listed Samtec Inc. HDBNC Series part numbers are active and orderable.
Select a variant by
- Frequency - max
- 6 GHz · 12 GHz
- Includes
- 2 pcs - 1 Connector, 1 Nut · 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Mounting
- Panel Mount, Through Hole · Panel Mount, Through Hole, Right Angle
- Package
- Bulk · Tray
- Voltage rating
- 330 V · 500 V
Shared specifications
- Body finish
- Nickel
- Body material
- Brass
- Cable group
- -
- Center contact material
- Beryllium Copper
- Center contact plating
- Gold
- Connector type
- Jack, Female Socket
- Contact termination
- Solder
- Dielectric material
- Polytetrafluoroethylene (PTFE)
- Fastening type
- Bayonet Lock
- Features
- 12G-SDI
- Housing color
- Silver
- Impedance
- 75 Ohms
Variant comparison
| Parameter | HDBNC-J-P-GN-RA-BH2 | HDBNC-J-P-GN-ST-BH1 |
|---|---|---|
| Frequency - max | 6 GHz | 12 GHz |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | 2 pcs - 1 Connector, 1 Nut |
| Mounting | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole |
| Package | Bulk | Tray |
| Voltage rating | 500 V | 330 V |
Request a quote on any Samtec Inc. HDBNC Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
