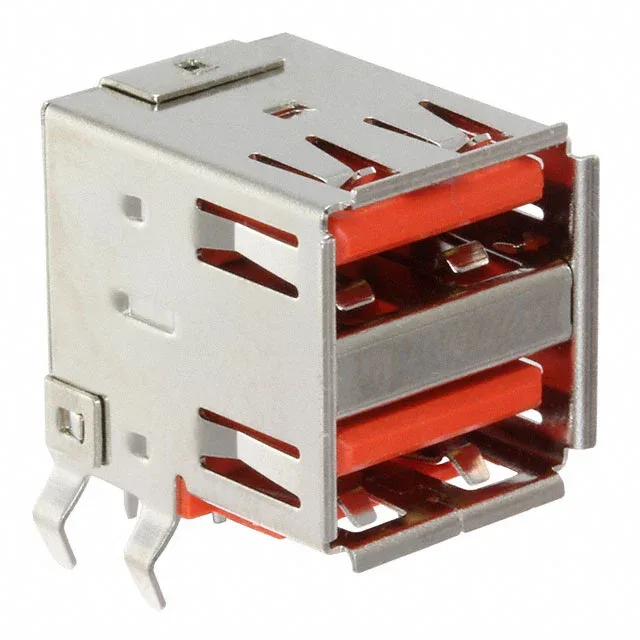

USBR-A-D-S-O-TH
Samtec Inc.
USBR8Receptacle
Ref. price$2.6800
Lead time on requestGet quote ›
Samtec Inc. USBR Series
9 variants · Samtec Inc.
About the Samtec Inc. USBR Series
The Samtec Inc. USBR Series series groups 9 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish of Gold, features of Board Lock and gender of Receptacle. Variants differ by connector type, mounting feature and mounting type, so you can match the exact connector type your application requires using the selection guide below. All listed Samtec Inc. USBR Series part numbers are active and orderable.
Select a variant by
- Connector type
- USB-A (USB TYPE-A) · USB-B (USB TYPE-B)
- Mounting feature
- Horizontal · Vertical
- Mounting type
- Through Hole · Through Hole, Right Angle
- Number of ports
- 1 · 2
- Positions
- 4 · 8
- Shell (Shielding material)
- - · Brass · Phosphor Bronze, Steel
- Material flammability rating
- - · UL94 V-0
Shared specifications
- Contact finish
- Gold
- Features
- Board Lock
- Gender
- Receptacle
- Insulation color
- Orange
- Mating cycles
- 1500
- Operating temperature
- -50°C ~ 85°C
- Package
- Tray
- Specifications
- USB 2.0
- Termination
- Solder
- Voltage - rated
- 30VAC
Variant comparison
| Parameter | USBR-A-D-S-O-TH | USBR-A-D-F-O-TH | USBR-A-S-F-O-TH | USBR-A-S-S-O-TH | USBR-B-S-S-O-TH | USBR-B-S-F-O-TH |
|---|---|---|---|---|---|---|
| Connector type | USB-A (USB TYPE-A) | USB-A (USB TYPE-A) | USB-A (USB TYPE-A) | USB-A (USB TYPE-A) | USB-B (USB TYPE-B) | USB-B (USB TYPE-B) |
| Mounting feature | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal |
| Mounting type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of ports | 2 | 2 | 1 | 1 | 1 | 1 |
| Positions | 8 | 8 | 4 | 4 | 4 | 4 |
| Shell (Shielding material) | - | - | Brass | Brass | Phosphor Bronze, Steel | Phosphor Bronze, Steel |
| Material flammability rating | - | - | UL94 V-0 | UL94 V-0 | UL94 V-0 | — |
Request a quote on any Samtec Inc. USBR Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Samtec Inc. USBR Series variants differ?
- Samtec Inc. USBR Series part numbers differ by connector type, mounting feature, mounting type and number of ports. Use the selection guide above to pick by connector type.
- How many Samtec Inc. USBR Series part numbers are listed?
- 9 Samtec Inc. USBR Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Samtec Inc. USBR Series?
- Request a quote (RFQ) for any Samtec Inc. USBR Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
