FN9244SB-12-06
Schaffner EMC Inc. FN9244SB-12-06
MPNFN9244SB-12-06
Active

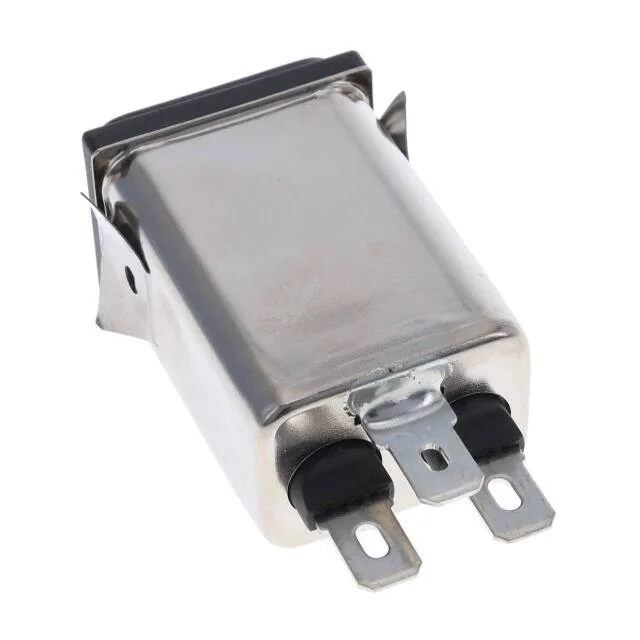

PWR ENT RCPT IEC320-C14 PANEL QC
$9.13Ref. price · indicative, final on quote
Price breaks USDindicative — final on quote
1+ $9.1300010+ $8.2160025+ $7.7400040+ $7.54175120+ $7.34317240+ $6.54933480+ $6.15242960+ $5.43794
RoHSROHS3 Compliant
StockContact for availability
MOQ1 pcs
SeriesFN 9244
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Series | FN 9244 |
| Filter type | Filtered (EMI, RFI) - Commercial, Medical |
| Mounting | Panel Mount, Snap-In |
| Connector type | Receptacle, Male Blades |
| Current rating - filter | 12A |
| IP rating | IP40 |
| Connector style | IEC 320-C14 |
| Panel cutout | Rectangular - 29.40mm x 20.80mm |
| Material flammability rating | UL94 V-2 |
| Approval agency | CQC, CSA, ENEC, UL |
| Package | Tray |
| Features | Bleed Resistor |
| Termination | Quick Connect - 0.250\" (6.3mm) |
| Panel thickness | 0.028\" ~ 0.059\" (0.70mm ~ 1.50mm) |
| Accomodates a fuse | No |
| Positions | 3 |
MPN
FN9244SB-12-06
