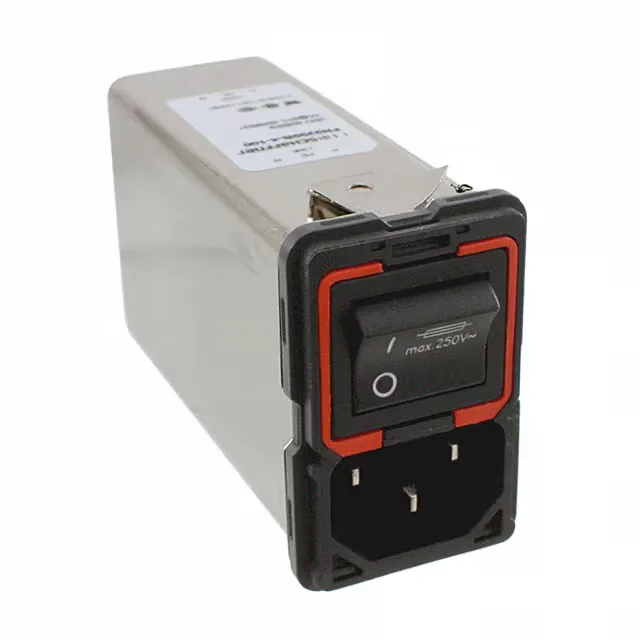

Schaffner EMC Inc. FN9299B-4-06
MPNFN9299B-4-06
Active
PWR ENT MOD RCPT IEC320-C14 PNL
$42.71Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFN 9290
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FN 9290 |
| Filter type | Filtered (EMI, RFI) - Commercial, Medical |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-C14 |
| Current rating - filter | 4A |
| IP rating | IP40 |
| Panel cutout | Rectangular - 28.80mm x 47.10mm |
| Material flammability rating | UL94 V-2 |
| Approval agency | CQC, CSA, ENEC, UL |
| Package | Bulk |
| Termination | Quick Connect - 0.250\" (6.3mm) |
| Panel thickness | 0.039\" ~ 0.098\" (1.00mm ~ 2.50mm) |
| Switch features | Switch On-Off |
| Accomodates a fuse | Yes (Fuse Not Included) |
| Fuse holder, drawer | Fuse Holder, Twin Fused |
| Positions | 3 |
