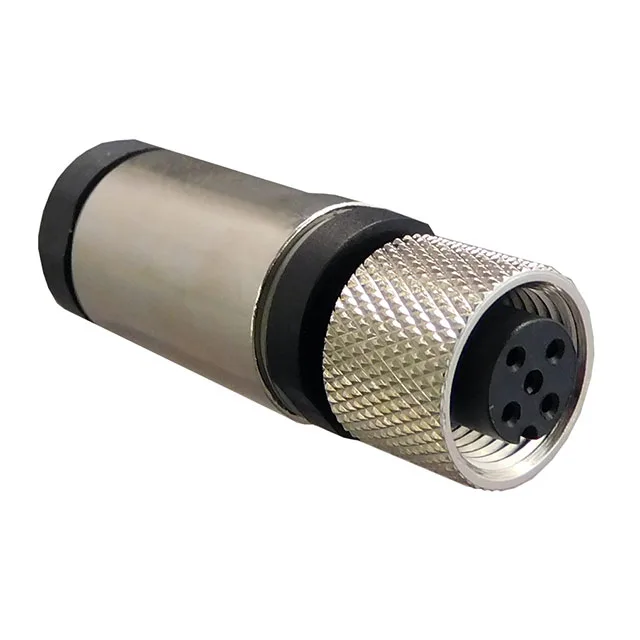

Stewart Connector SS-12000-020
MPNSS-12000-020
Active
CONN PLUG FMALE 5P GOLD SLDR CUP
$8.71Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Female Sockets |
| Fastening type | Threaded |
| Current rating | 4A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Cable opening | 0.236\" ~ 0.256\" (6.00mm ~ 6.50mm) |
| Operating temperature | -20°C ~ 85°C |
| Color | Silver |
| Shell material | Copper Alloy |
| Insert material | Thermoplastic |
| Contact material | Copper Alloy |
| Primary material | Metal |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell, Coupling Nut |
| Shielding | Shielded |
| Orientation | A |
| Termination | Solder Cup |
| Applications | Communication Systems, Industrial |
| Shell finish | Nickel |
| Positions | 5 |
| Shell size - insert | M12-5 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 1.00µin (0.025µm) |
