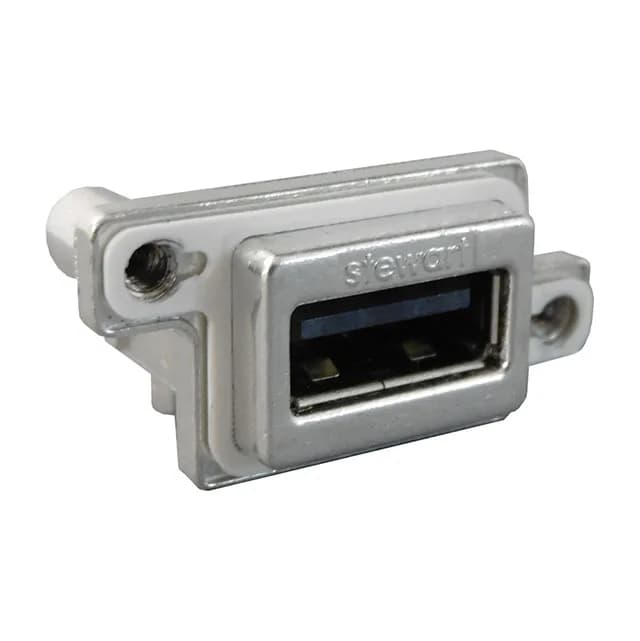

Stewart Connector SS-52200-002
MPNSS-52200-002
Active
CONN USB 2.0 SEALJACK RT M3
$8.2700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSealJack™
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SealJack™ |
| Mounting | Panel Mount, Through Hole |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30V |
| Current rating | 1.5A |
| Positions | 4 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange, Horizontal |
| Operating temperature | -40°C ~ 85°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy, Steel, Stainless |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Gender | Receptacle |
| Package | Tray |
| Features | Board Guide |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 750 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
