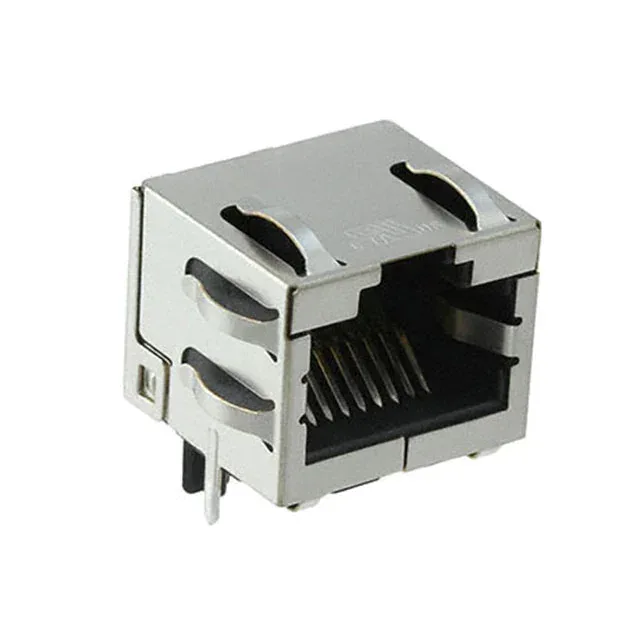

Stewart Connector SS-60300-011
MPNSS-60300-011
Active
RIGHT ANGLE SHIELDED JACK WITH E
$2.58Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series60300
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 60300 |
| Mounting | Panel Mount, Through Hole |
| Connector type | Jack |
| LED color | Does Not Contain LED |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic |
| Package | Tray |
| Features | Board Guide |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Tab direction | Up |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 50.0µin (1.27µm) |
| Number of positions (Contacts) | 8p8c (RJ45, Ethernet) |
