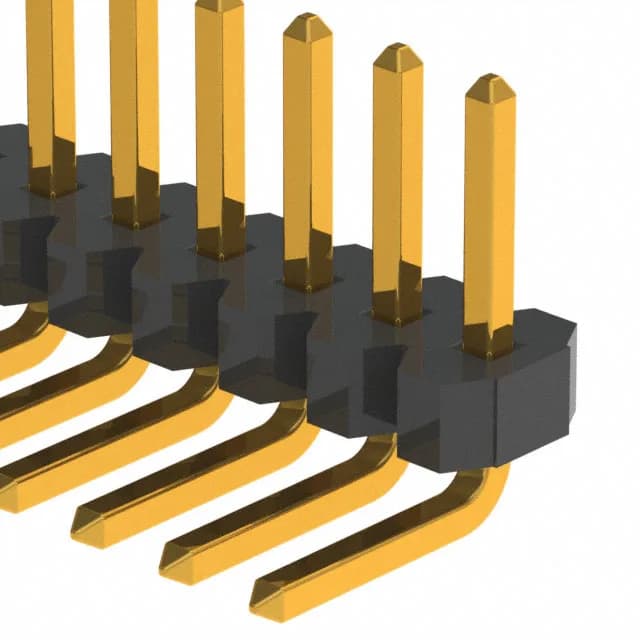

Sullins Connector Solutions GRPB121VWCN-RC
MPNGRPB121VWCN-RC
Active
CONN HEADER R/A 12POS 1.27MM
$1.1800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation height | 0.084\" (2.14mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 12 |
| Contact finish - post | Gold |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.118\" (3.00mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
