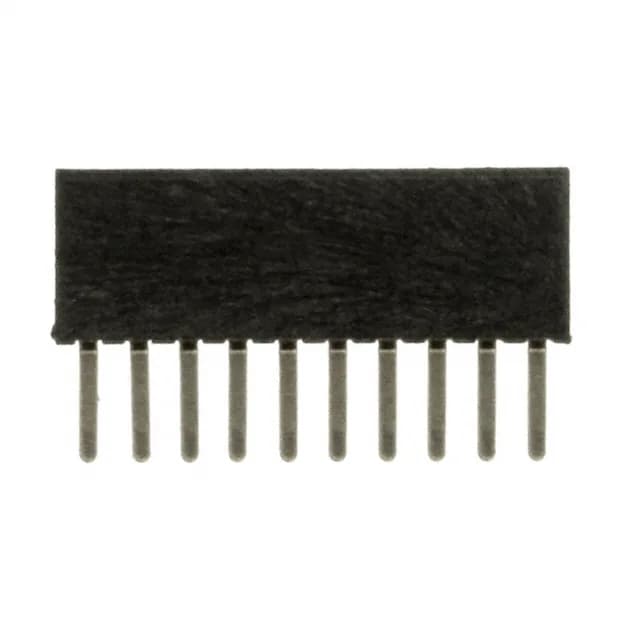

Sullins Connector Solutions LPPB101NFFN-RC
MPNLPPB101NFFN-RC
Active
CONN HDR 10POS 0.05 GOLD PCB
$1.3200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation height | 0.177\" (4.50mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 10 |
| Contact finish - post | Gold |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
