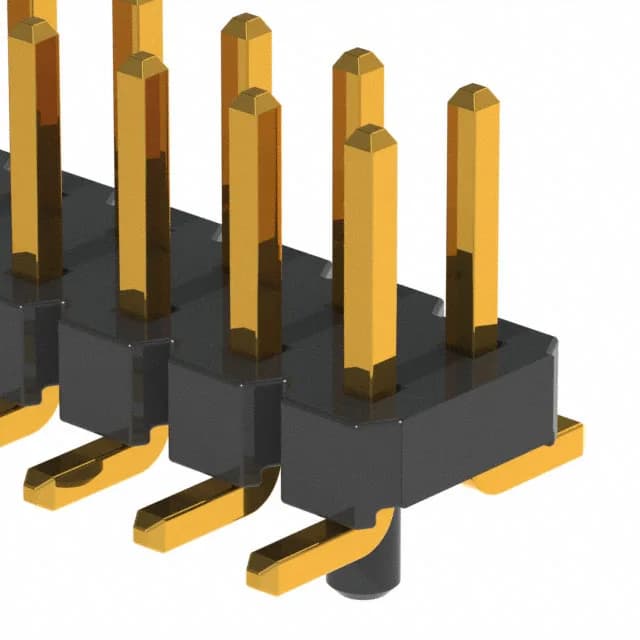

Sullins Connector Solutions NRPN122MAMP-RC
MPNNRPN122MAMP-RC
Active
CONN HEADER SMD 24POS 2MM
$2.1400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 150V |
| Current rating | 2A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Board Guide |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 24 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact length - mating | 0.141\" (3.60mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
